Name: Order 1000 liters tank in Stainless steel 304 - good price and ...
SKU: 378131
Price: 181000 SEK
Availability: InStock

Additional information

Product Description

Material: Stainless steel 304
Model: Vertical
New / Used: Used
Operating Pressure in Tank:
Configuration: single-skin
Max. Service Temperature: 80 °C
Maximum Product Density: 1200
Mobile Tank: No, it is not.
Övrig information: tank has never been used: welds polished Ra 0.8; agitator completely stainless-steel; we can't give any guarantees about the agitator
Agitator: Yes
Tank Shape: cylindrical
Complete Drainage:

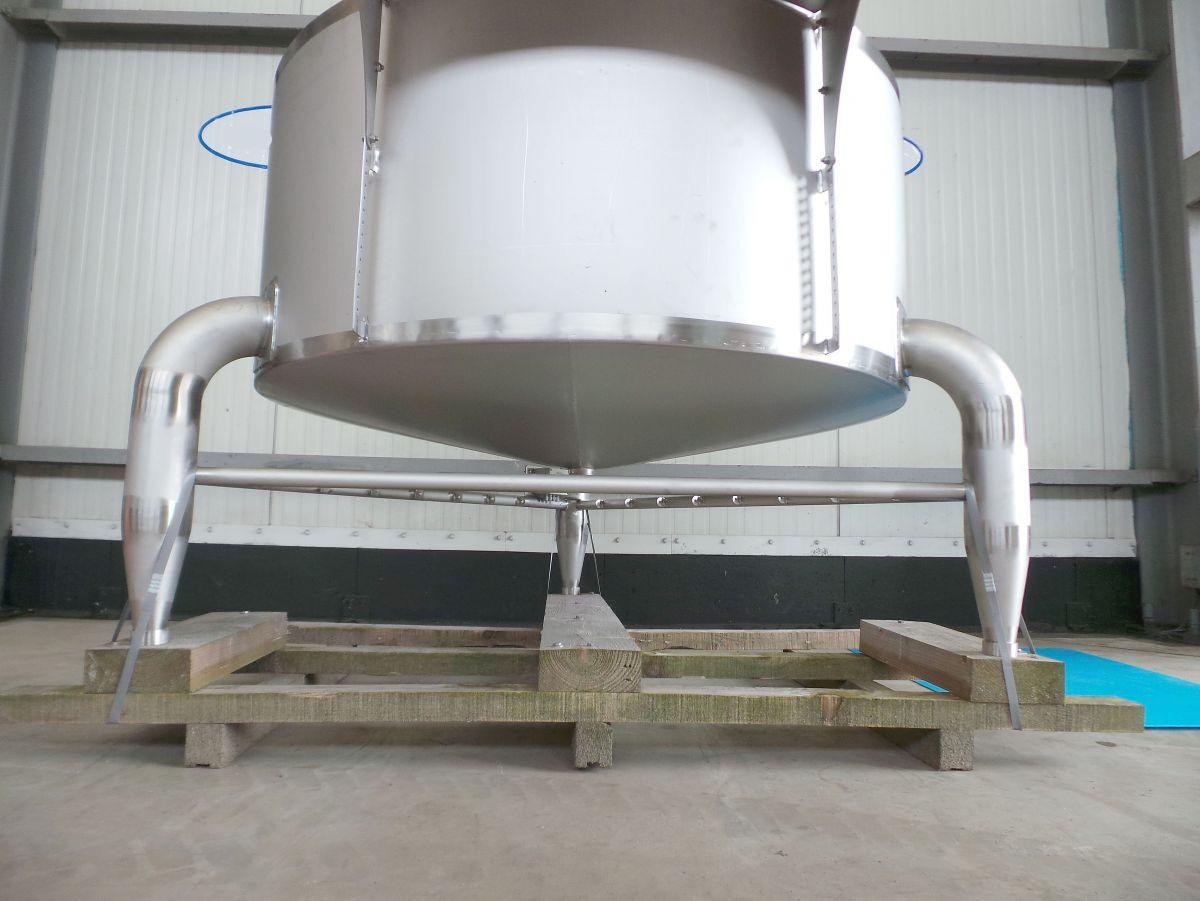

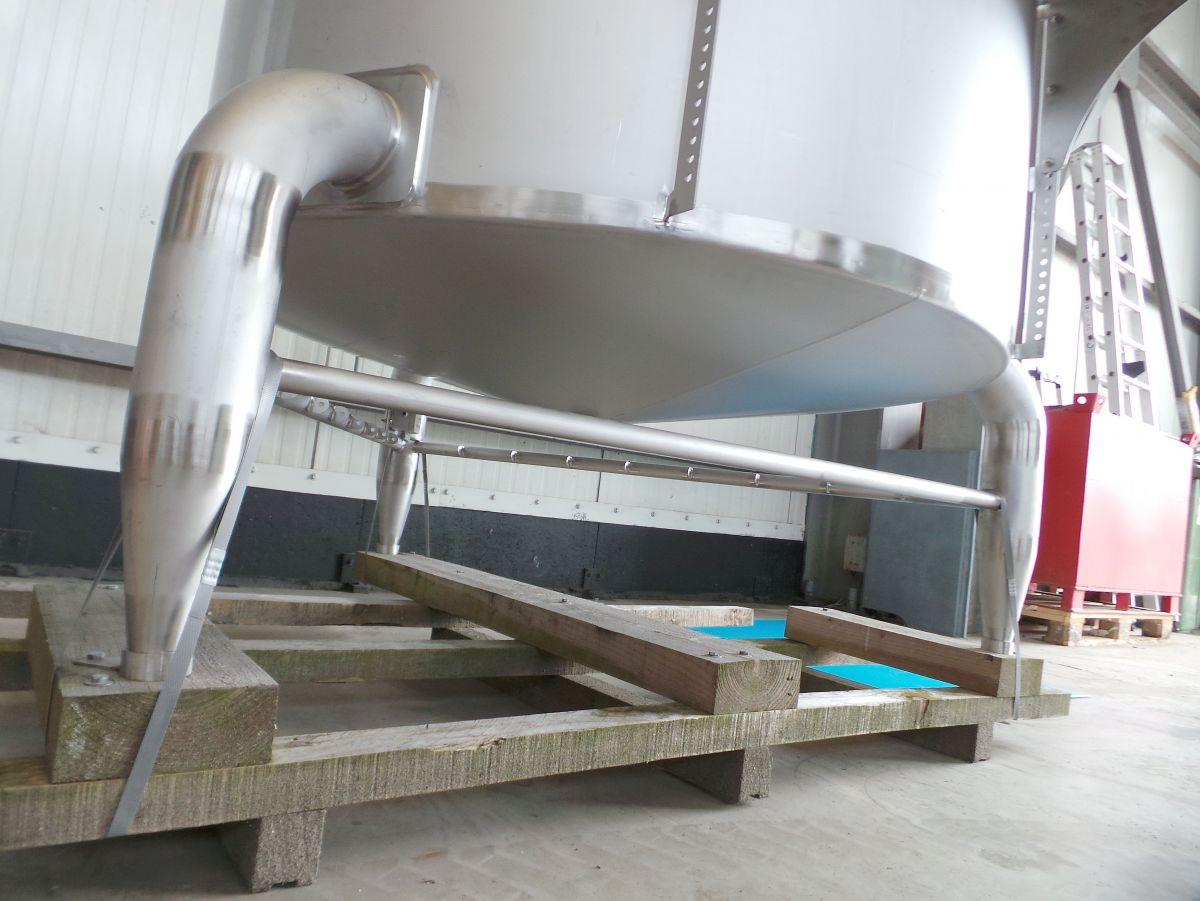

Bottom Type: conical 15
Heating / Cooling: No
Contact Surface: SS AISI 304 (V2A)
Volume in liters: 1000

Equipment

Product Dokument finns: No, it is not.
Agitator flange: Yes
Nameplate: No, it is not.

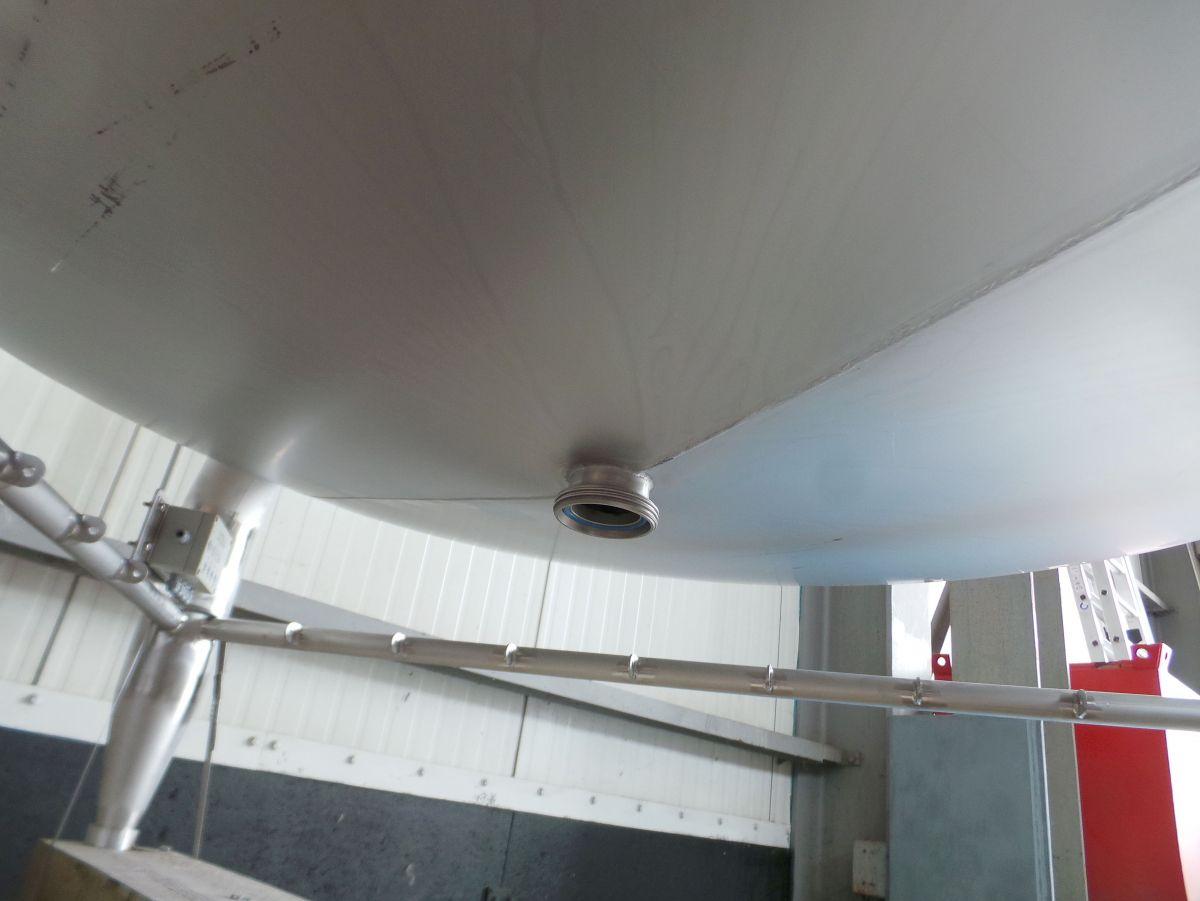

Tank Outlet: inside Ø 50 mm
Technical Drawing Available: Yes
Outlet Type: DIN11850 male
Outlet Valve: No, it is not.

Material Overview

Material: Stainless steel 304
Fixing point(s): RVS 304
Material vätskeberörd del på omrörare: SS AISI 304 (V2A)

Tank Dimensions

Cylinder Height: 630 mm
Outlet Height to Ground: 280 mm
Total Height: 2.100 mm
Outer diameter: 1.450 mm

Stirrer

Power (kW): 2,20
Motor Position: at the top

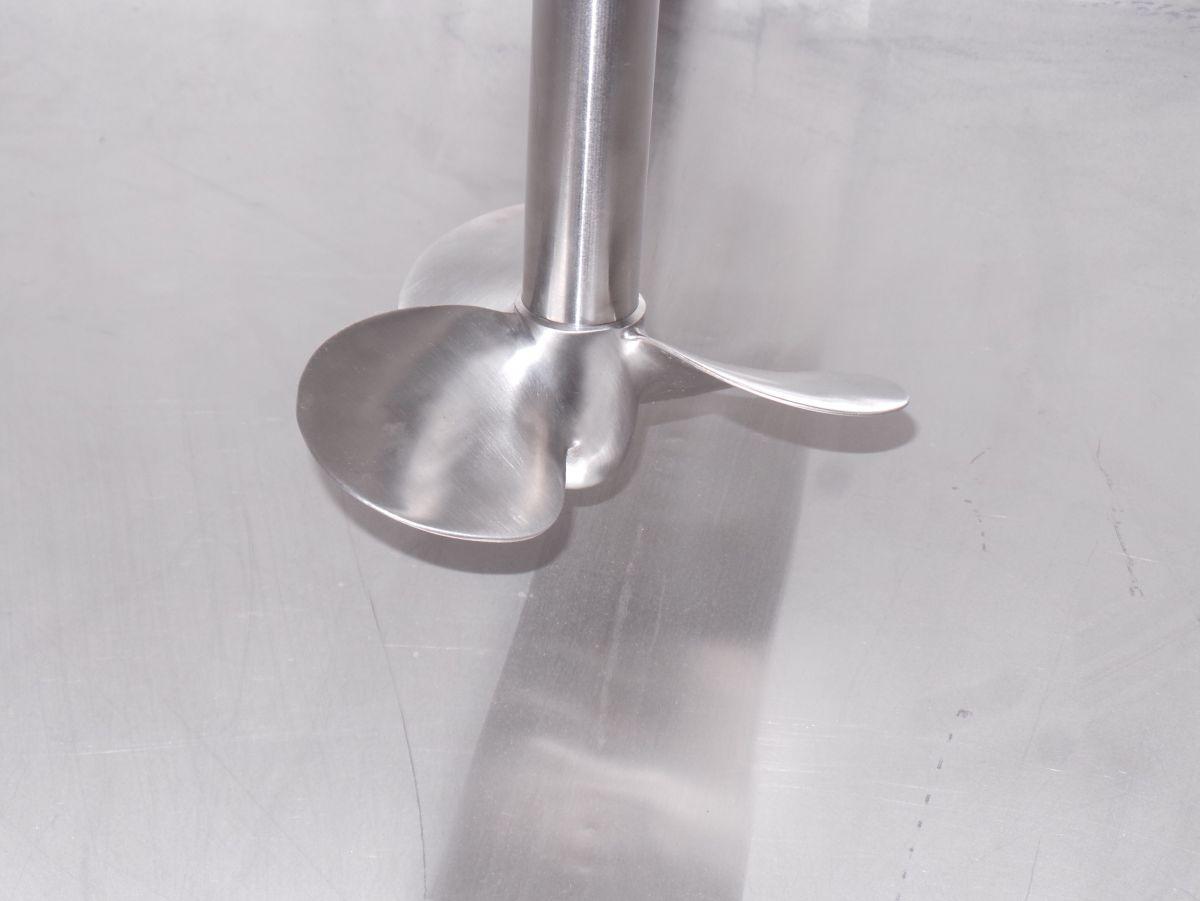

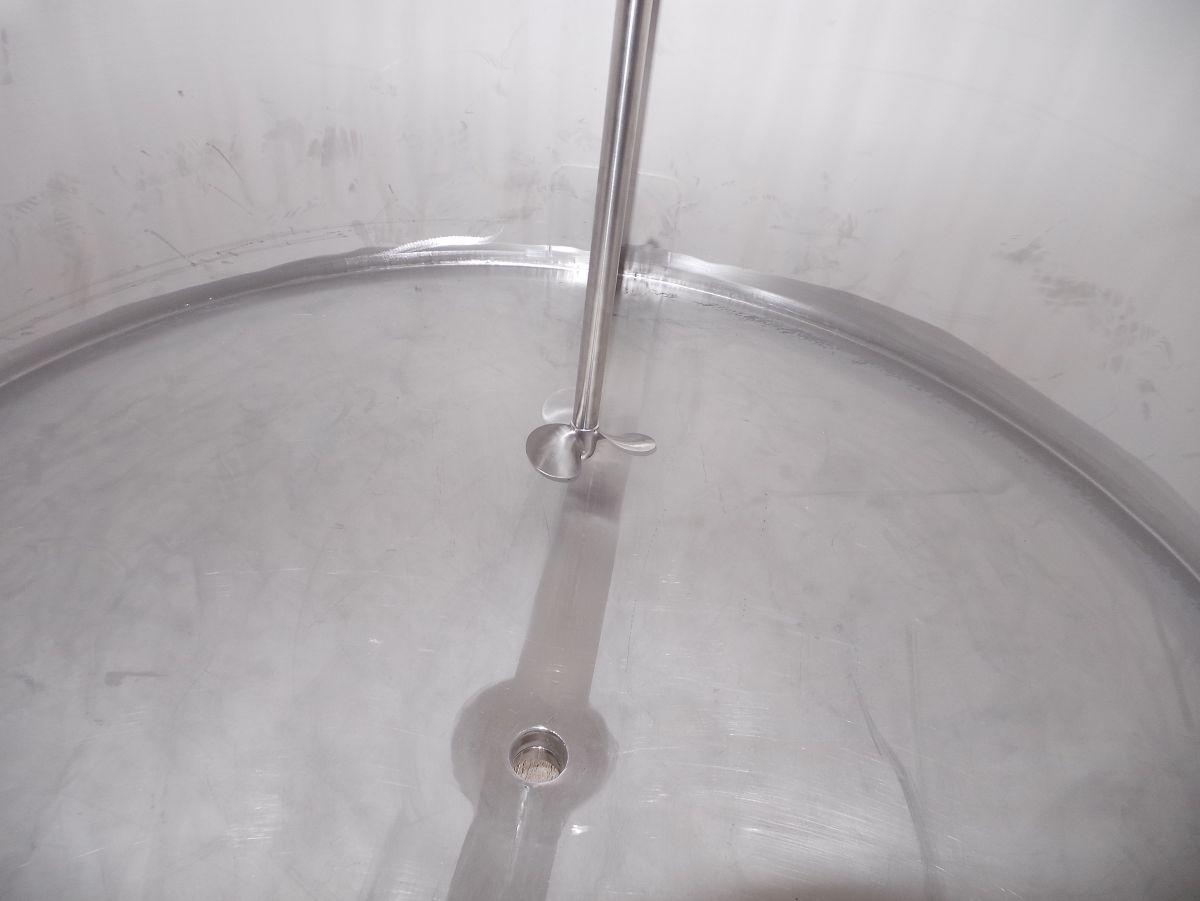

Agitator Type: propeller agitator
Speed (RPM): 1.425
Voltage: three-phase

Tjocklek på tank

Bottom: 3 mm
Cylinder: 3 mm
Top: 3 mm

Mer

Isolated: No
Weight: 350

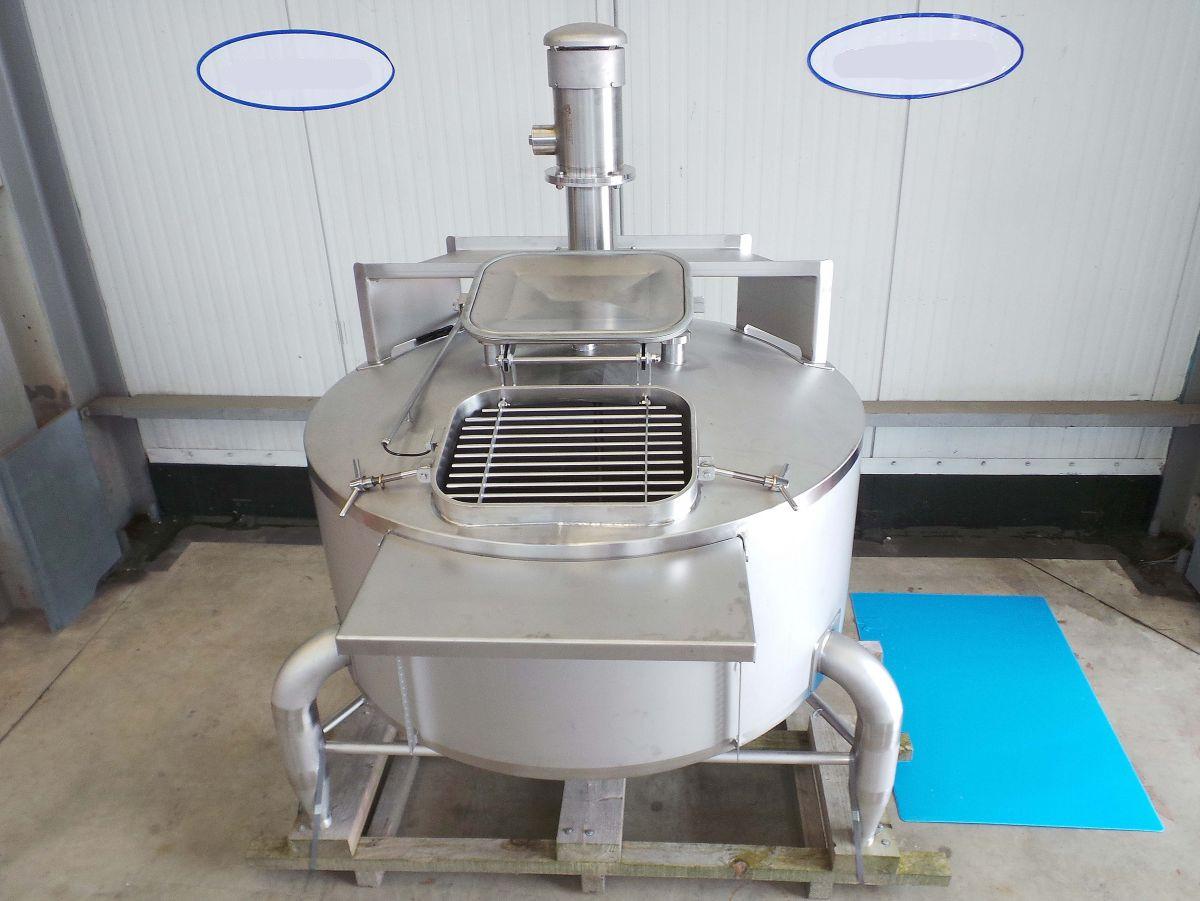

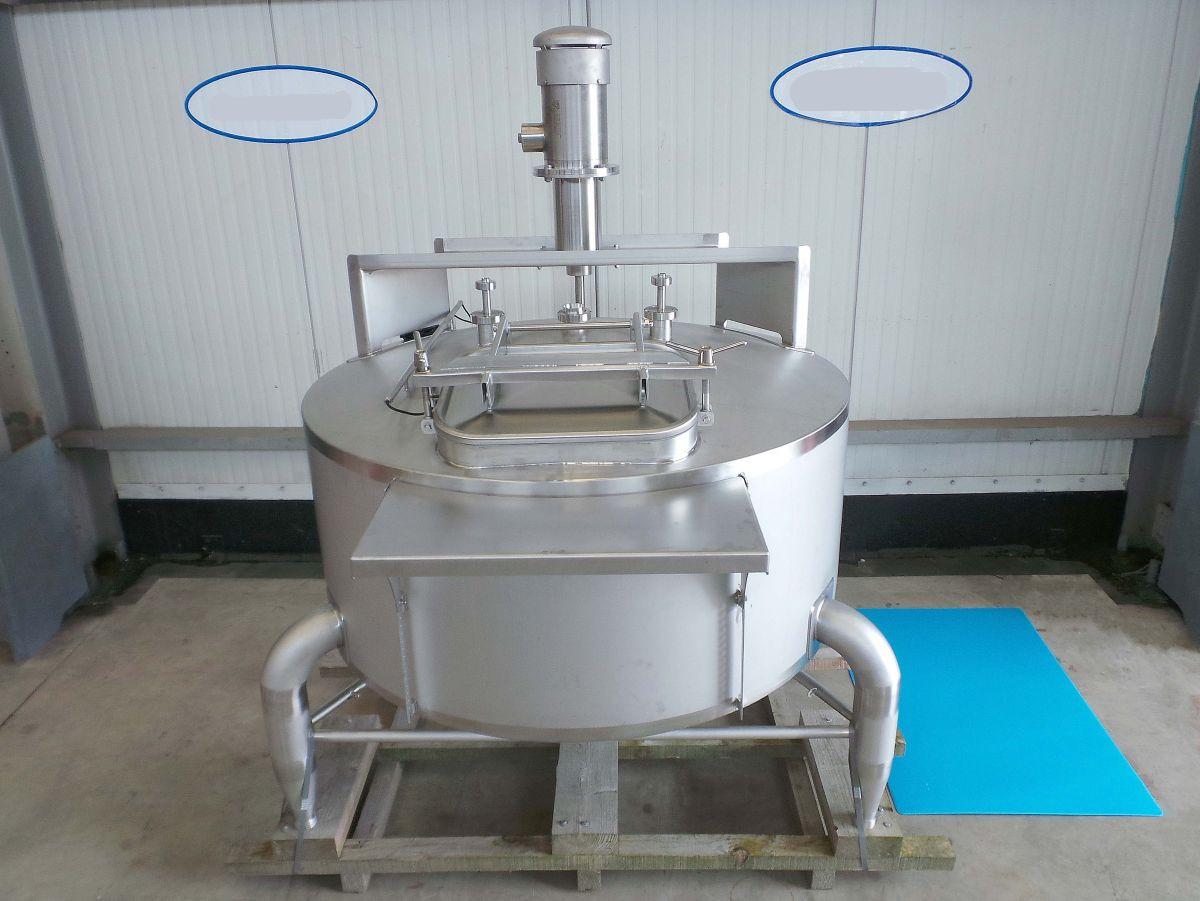

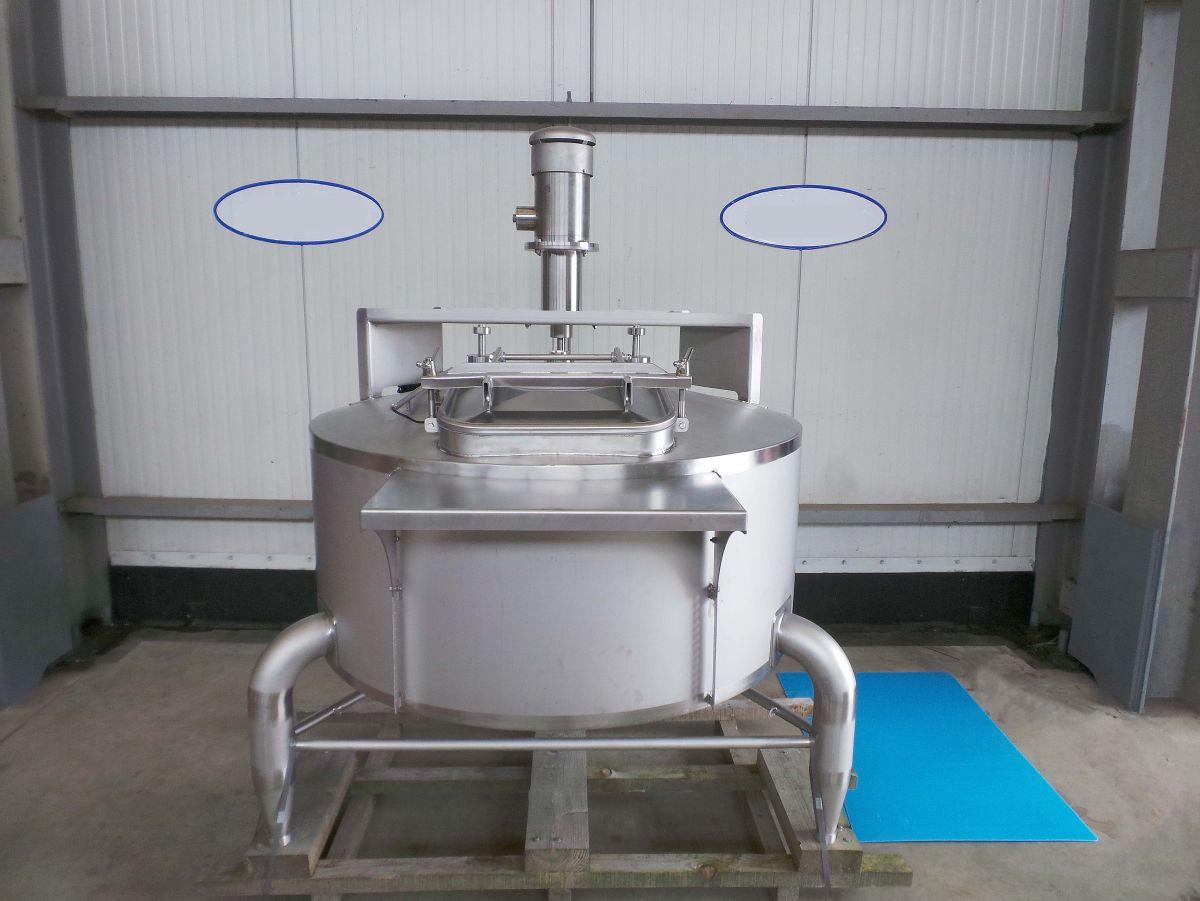

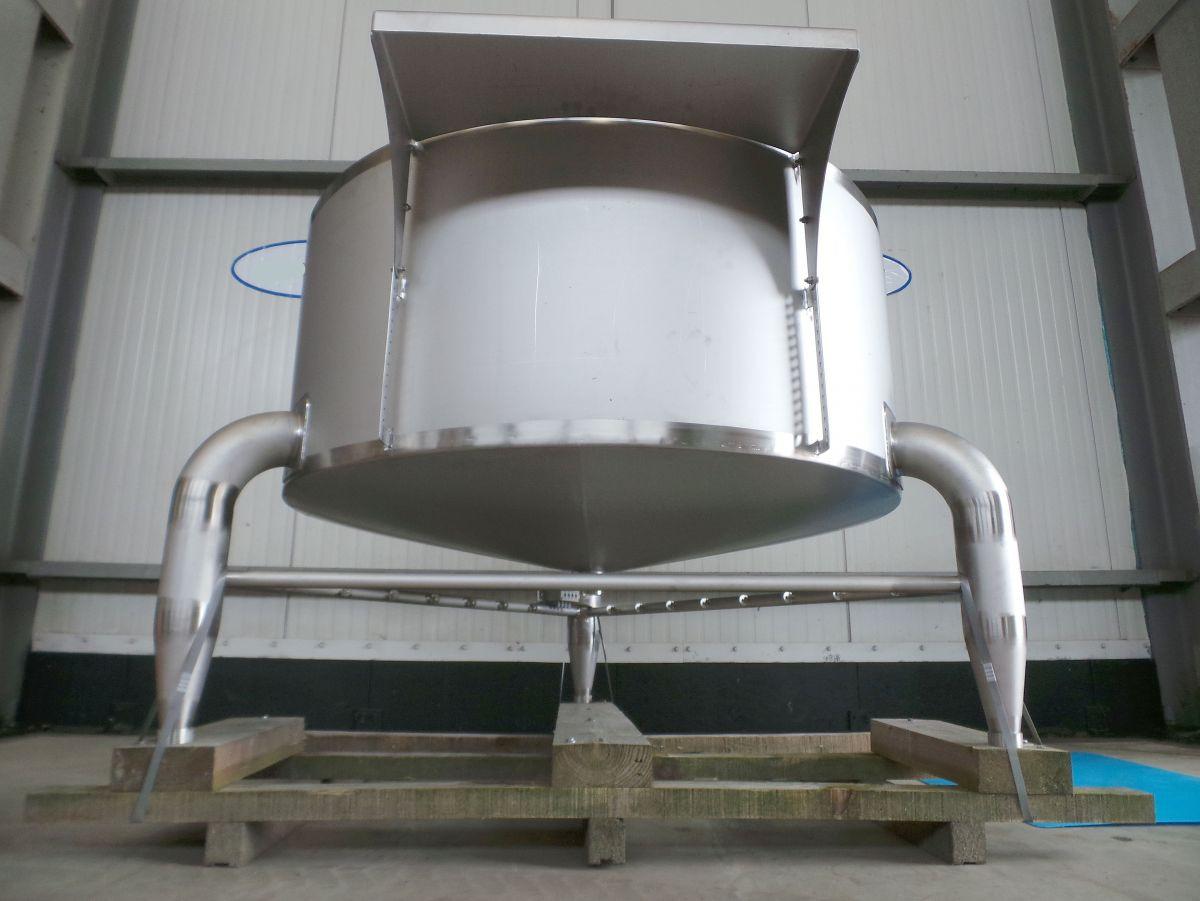

1000 liter tank in 304 stainless steel
