1000 liter tank in 304 stainless steel

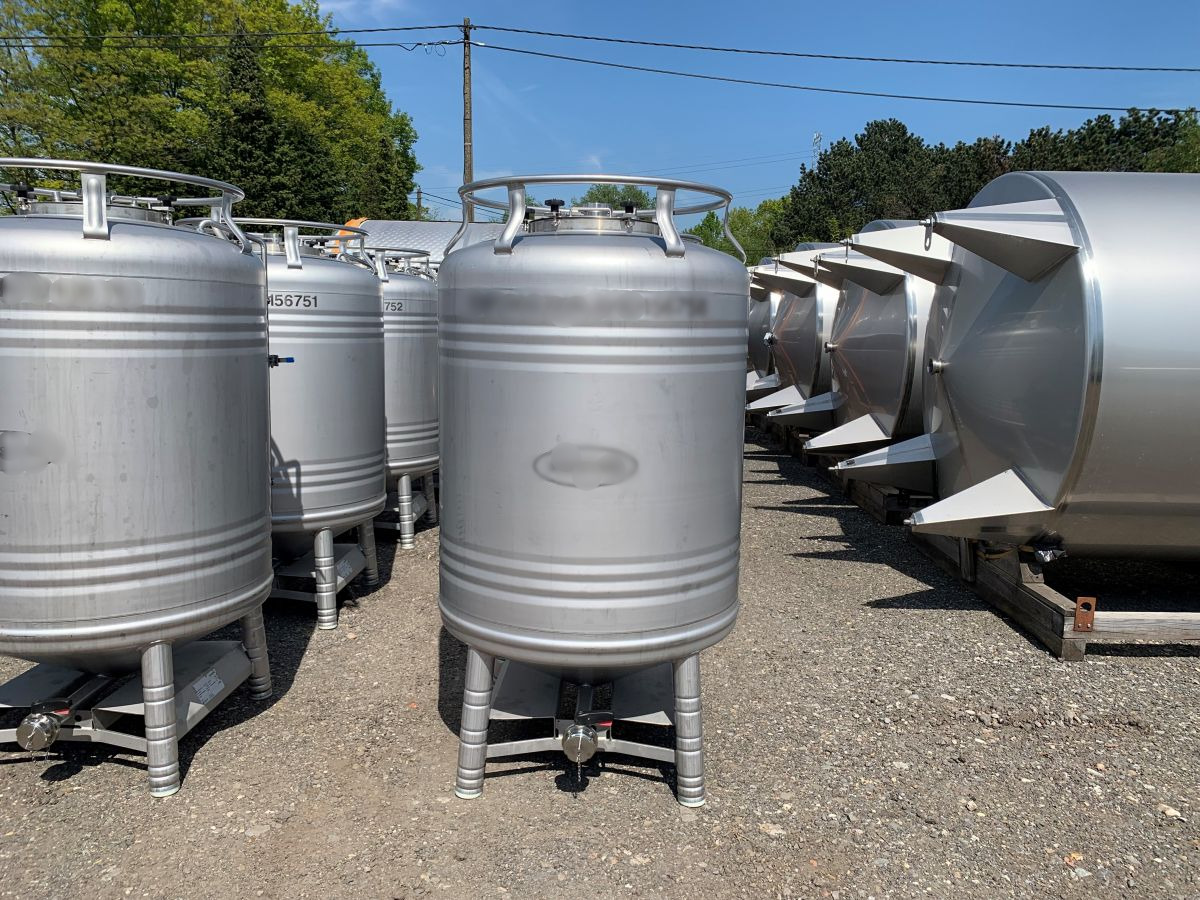

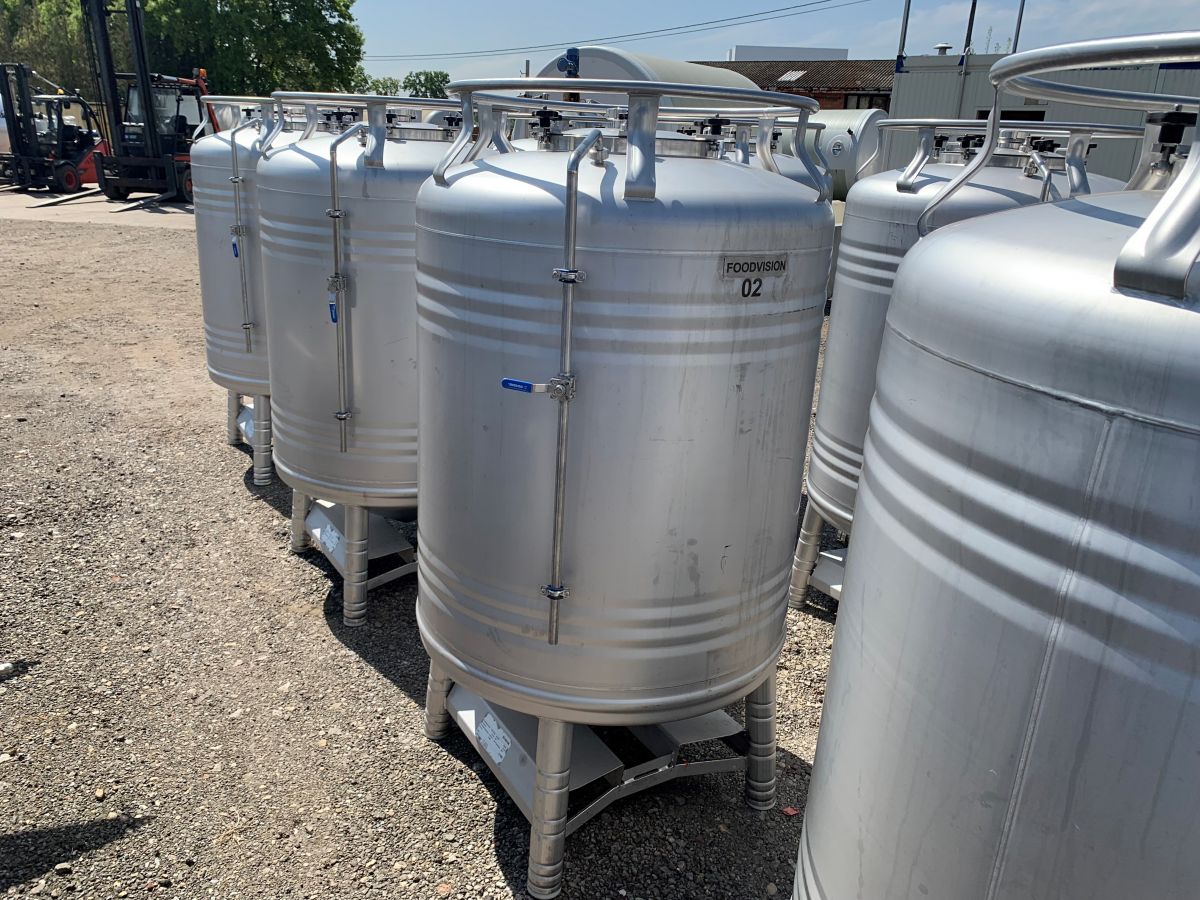

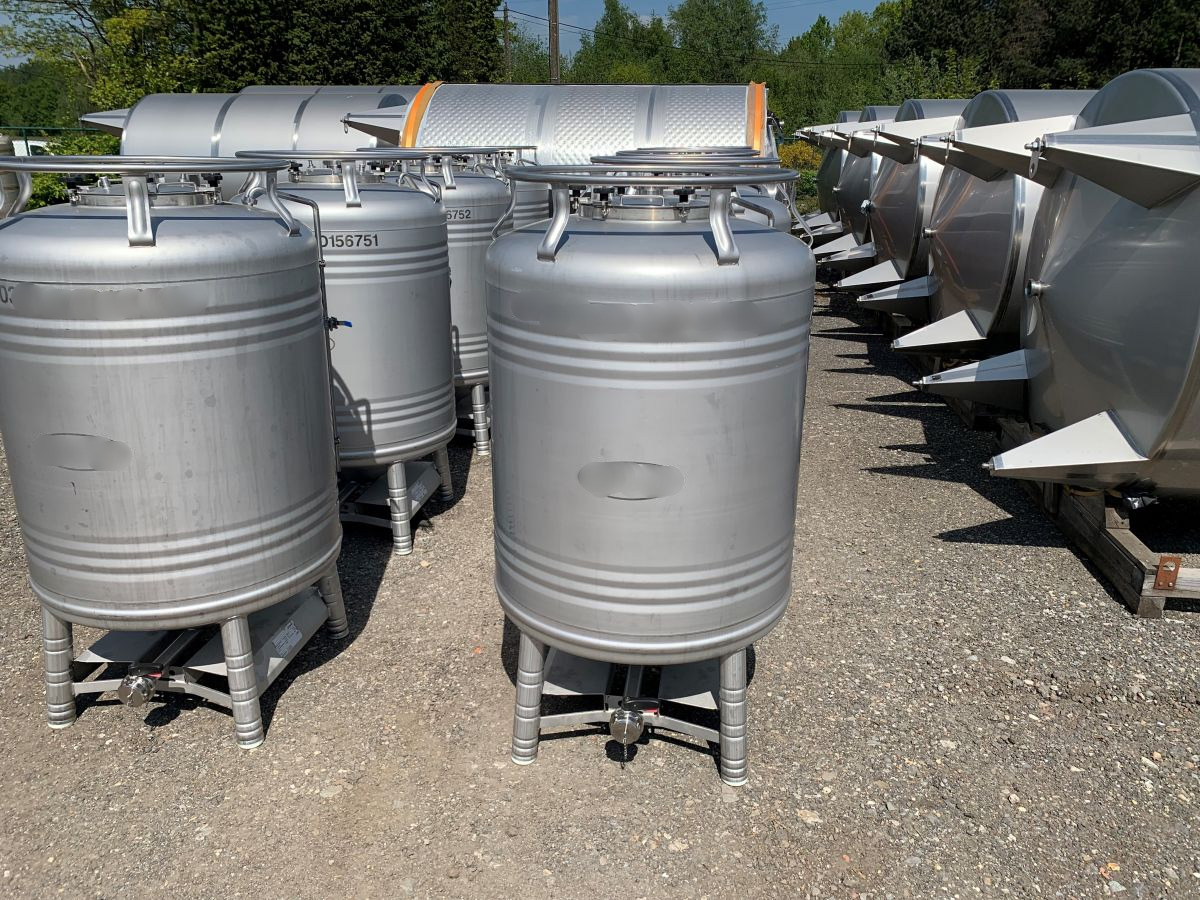

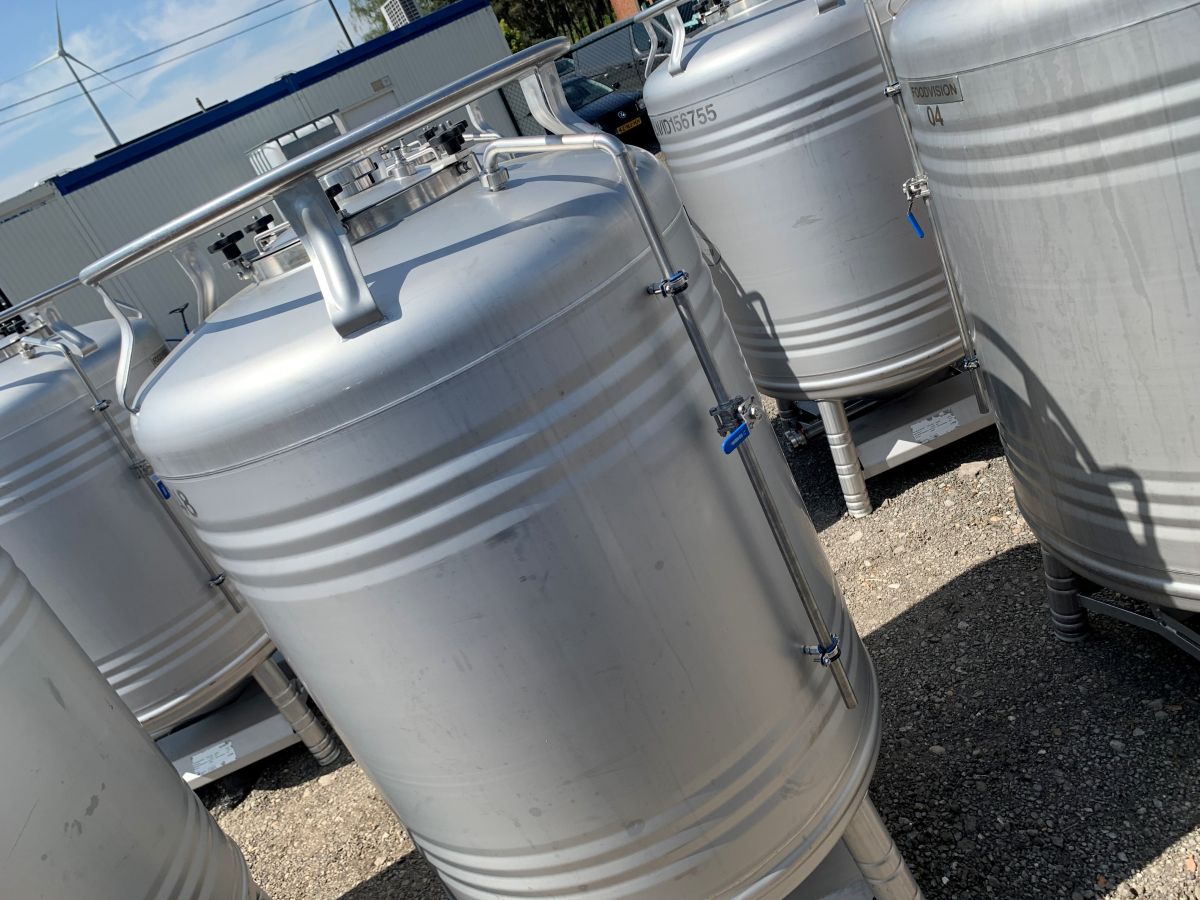

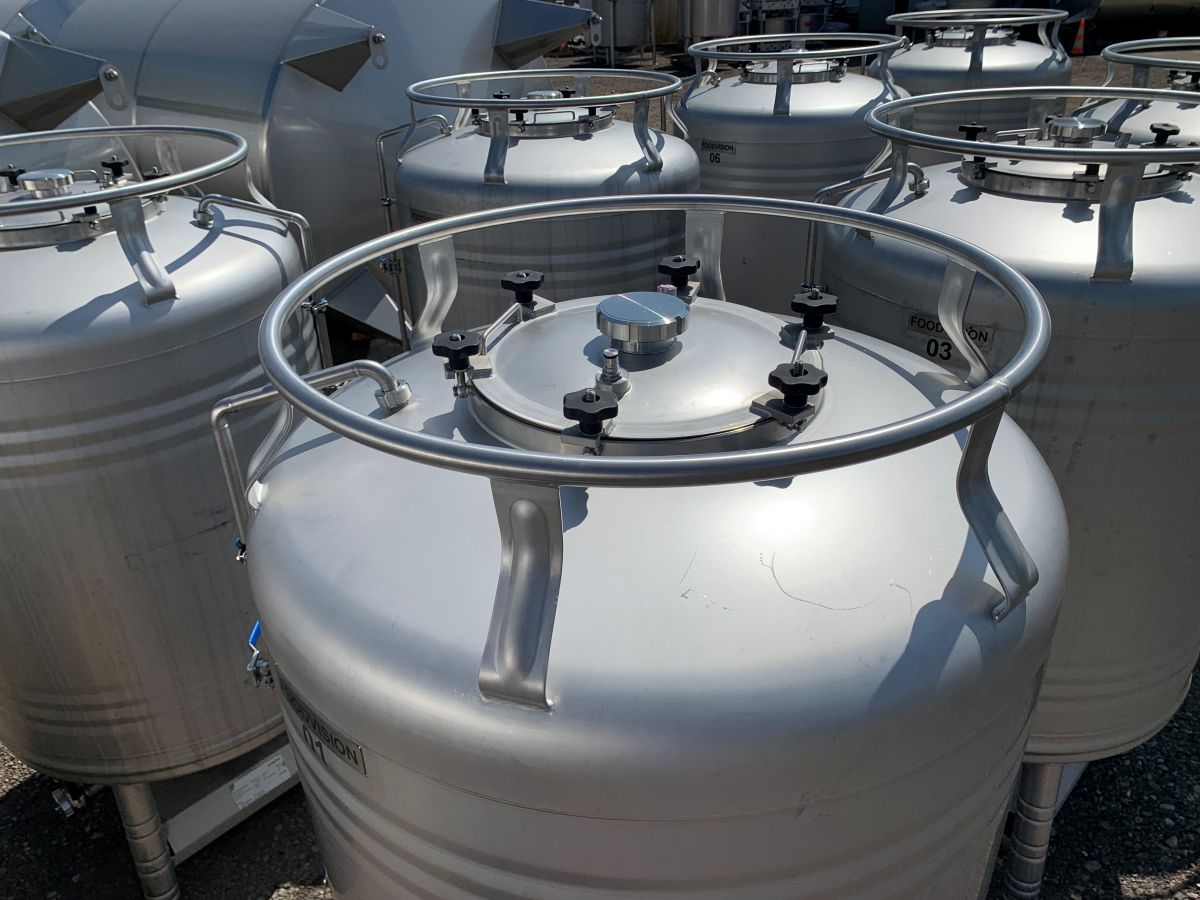

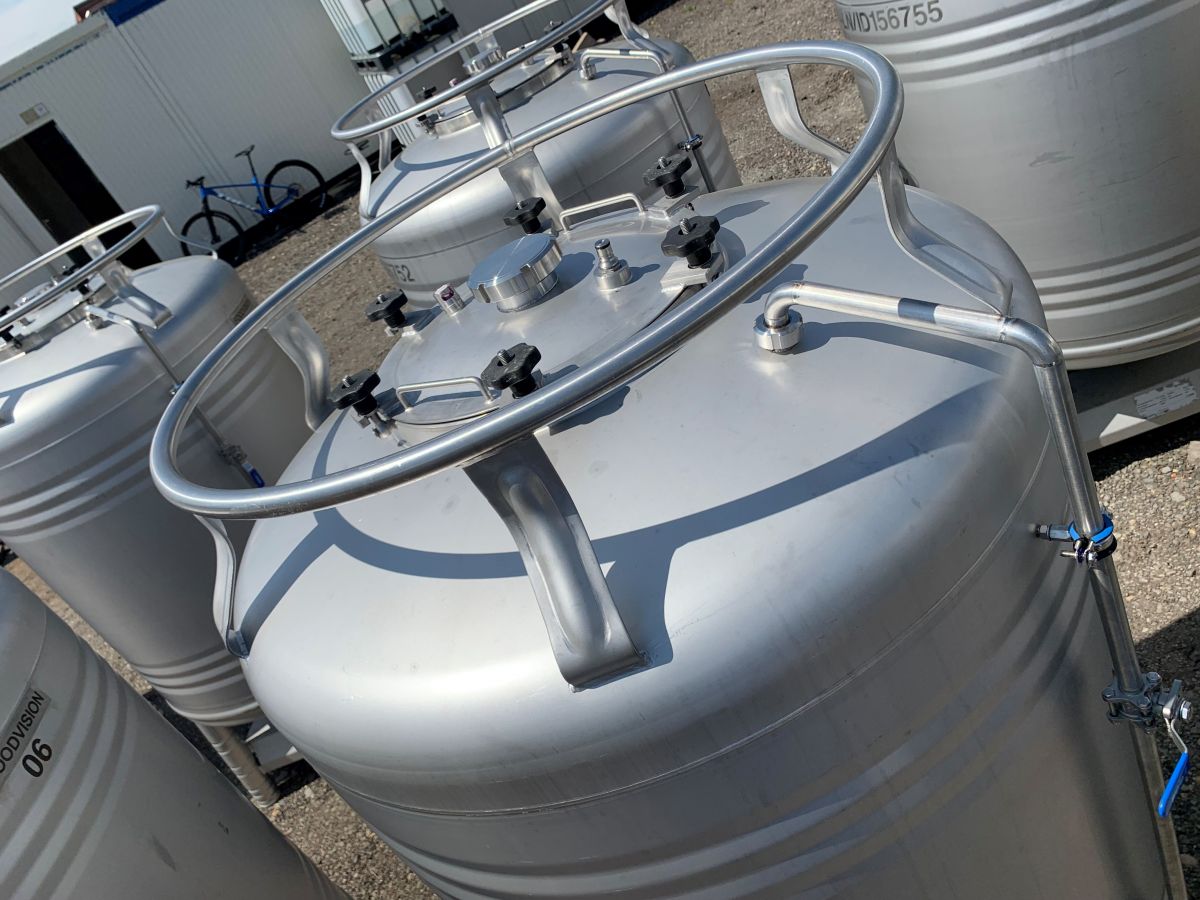

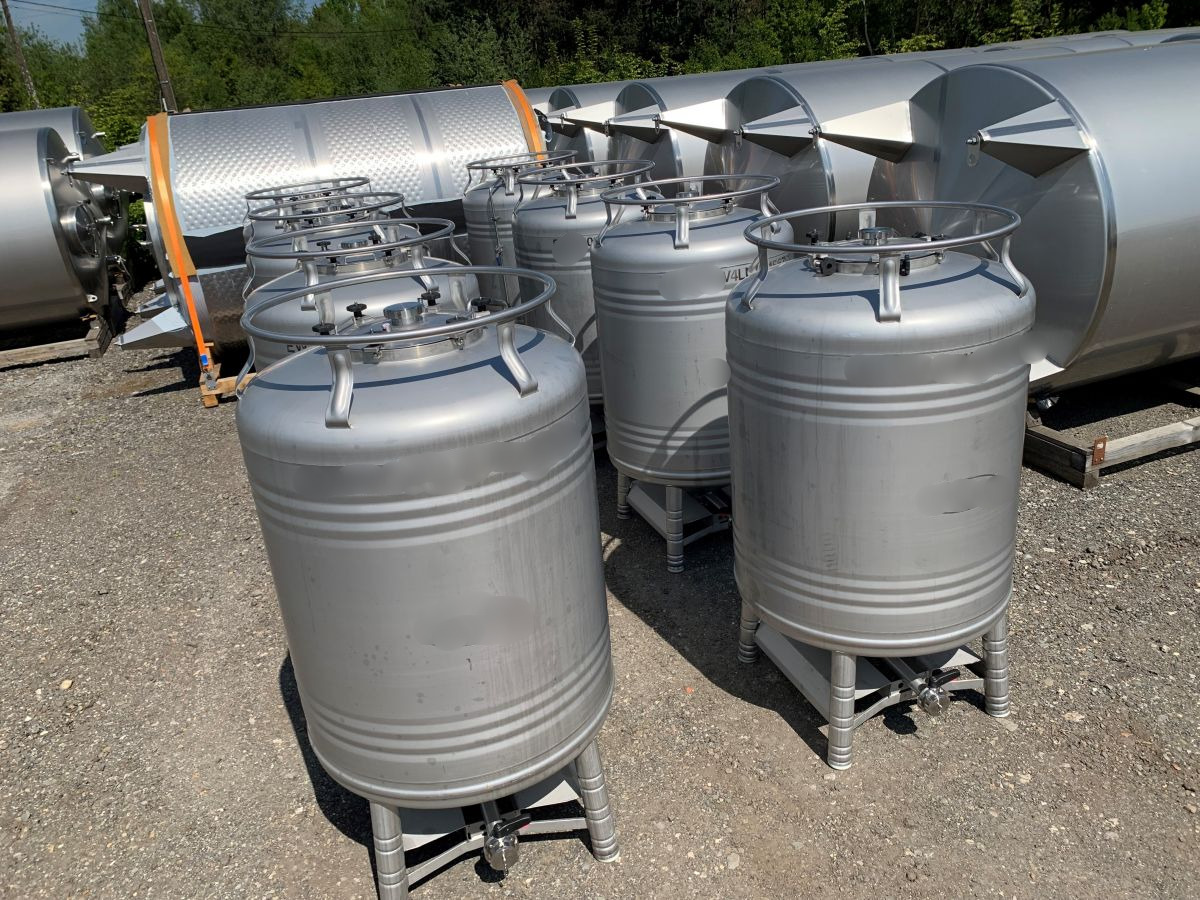

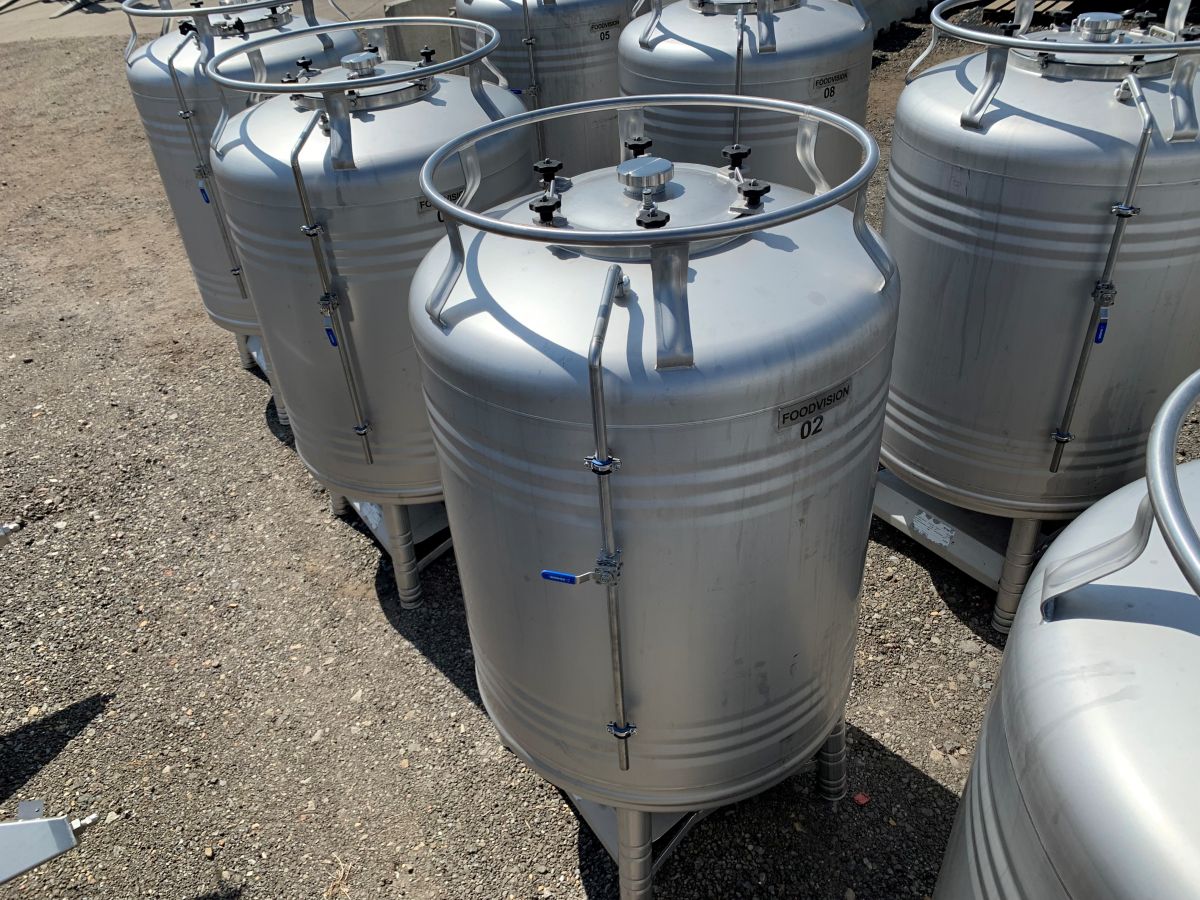

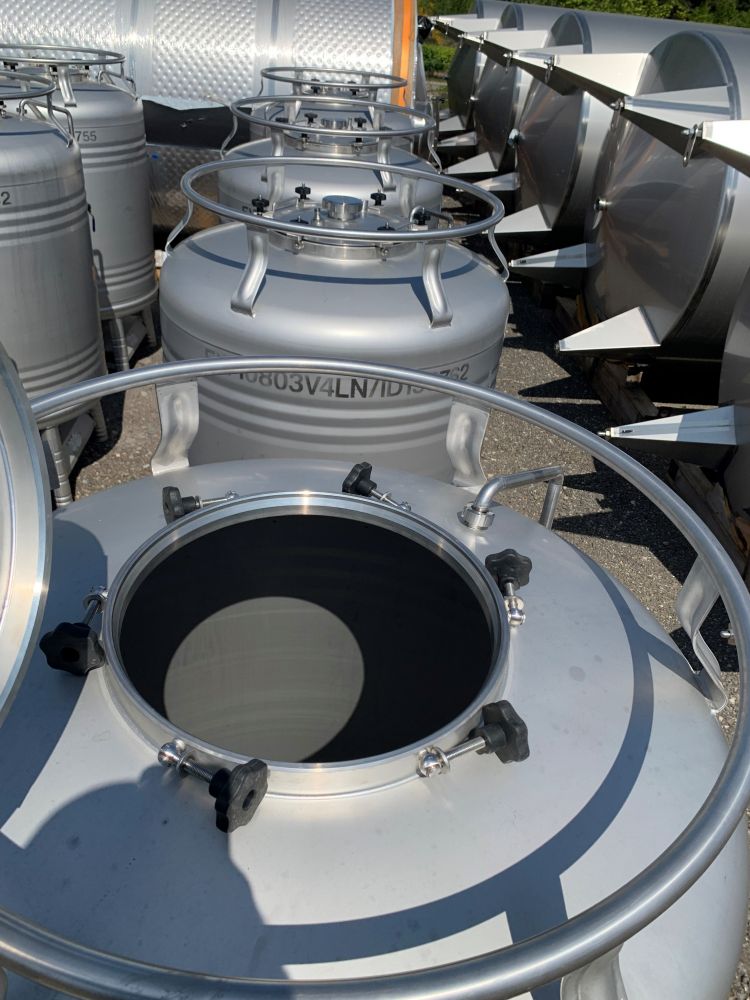

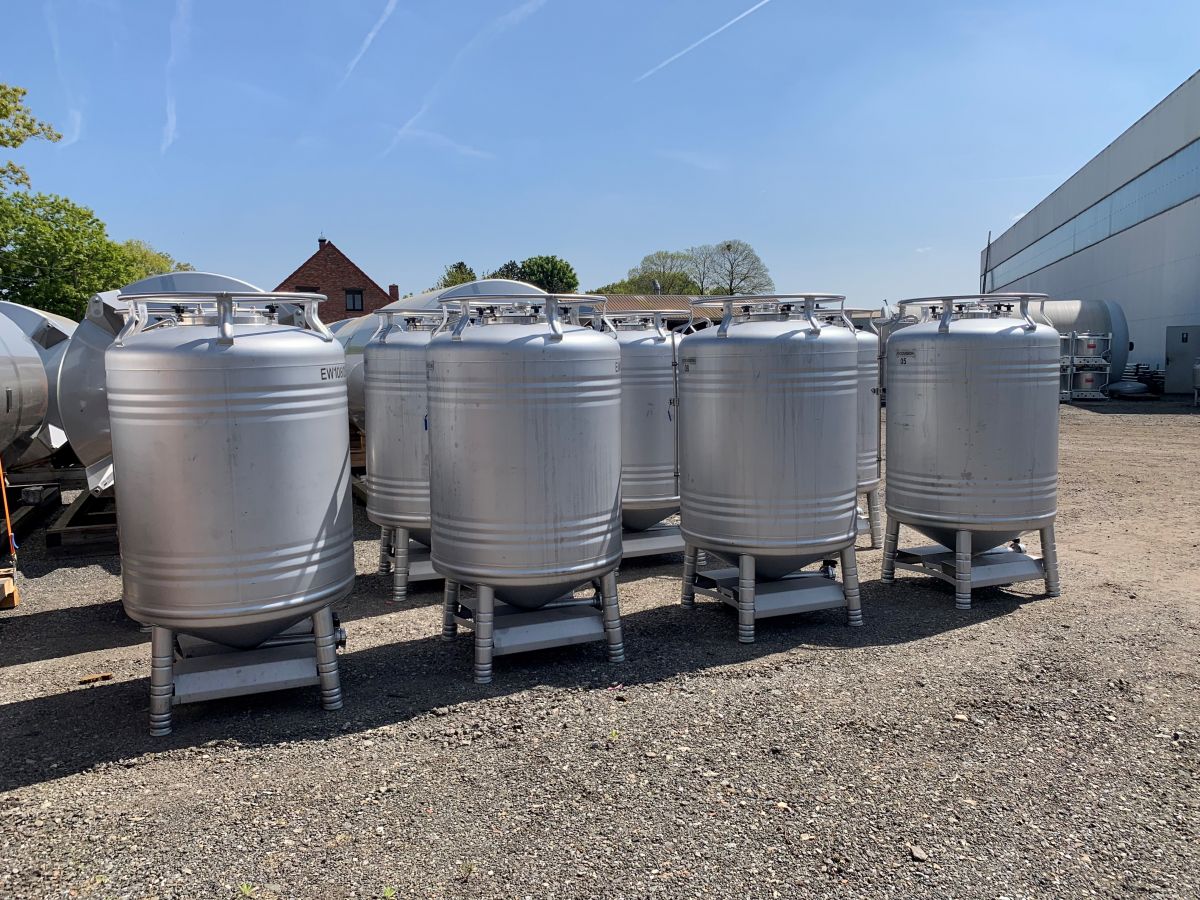

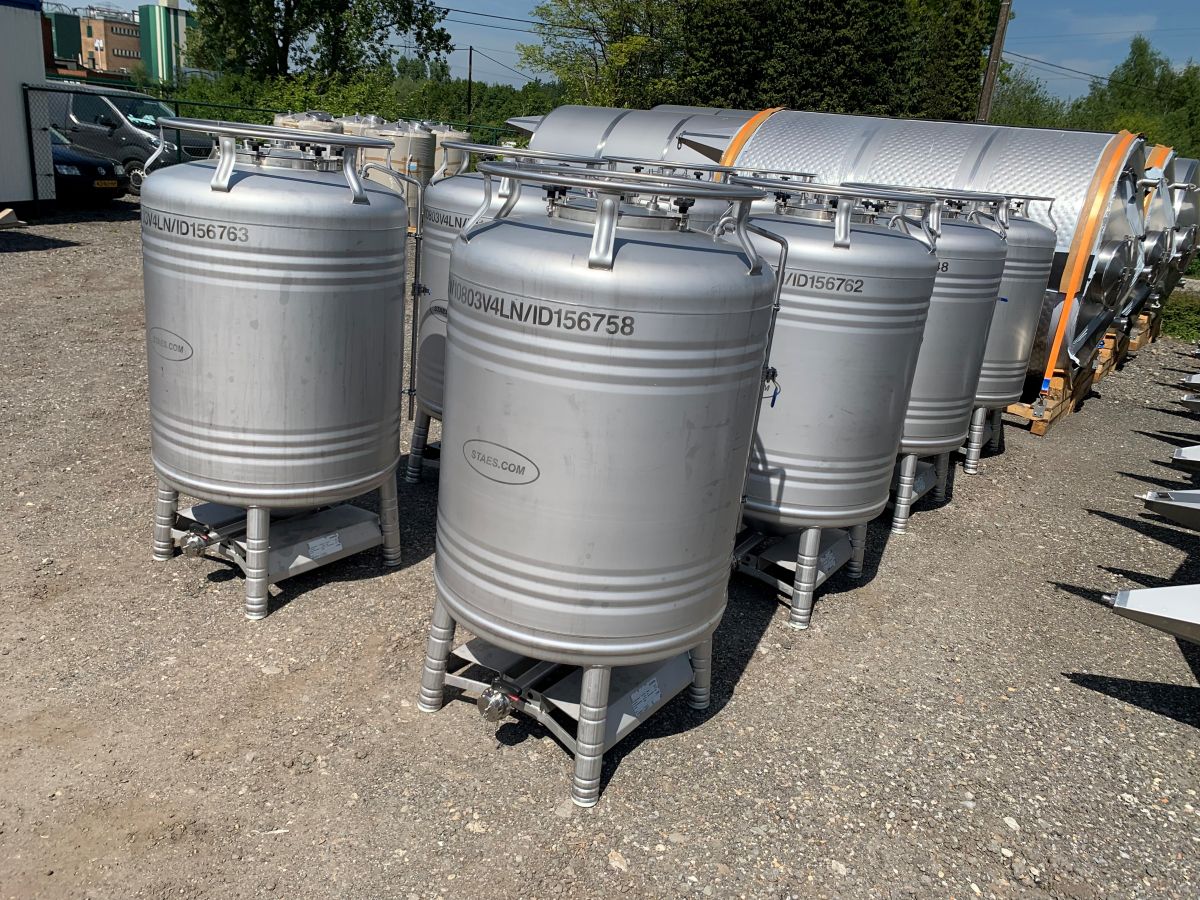

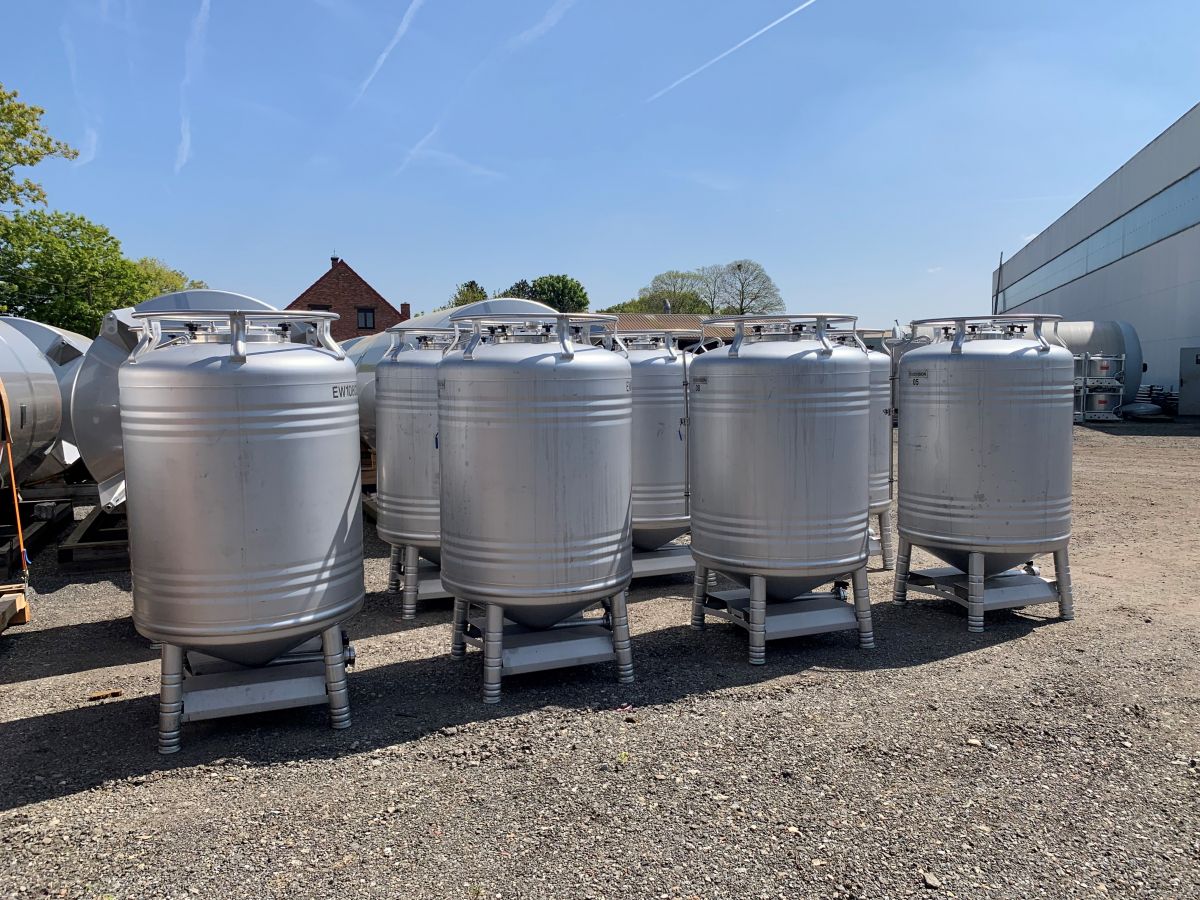

1000-liter Vertical tank in Stainless steel 304

This is a 1000-liter used tank, model Vertical, manufactured from Stainless steel 304. The product is approved for food-grade applications. The tank is designed as a pressure vessel.

Overpressure: 2 bars. Underpressure/vacuum: -15 Bar. Working pressure: pressure. Temperature range from -10 °C to 130 °C. Outlet type: DIN11851 male. Nameplate: Yes.

The facts

Additional information

Additional information

Product Description

Food-grade: Yes
Material: Stainless steel 304
Model: Vertical
New / Used: Used
Operating Pressure in Tank: pressure
Configuration: single-skin
Max. Service Temperature: 130 °C
Min. Operating Temperature: -10 °C
Mobile Tank: No, it is not.
Övrig information: The tanks have been used once in the food industry supply and are in absolute new condition, complete technical file included. Only what you see in the photos is with the tanks, there is no spray
Additional Information2: ball and there is no CO2 quick coupling as in the drawing, this can be ordered at an additional cost.
Agitator: No
Overpressure: 2 bars
Tank Shape: cylindrical
Complete Drainage: Yes

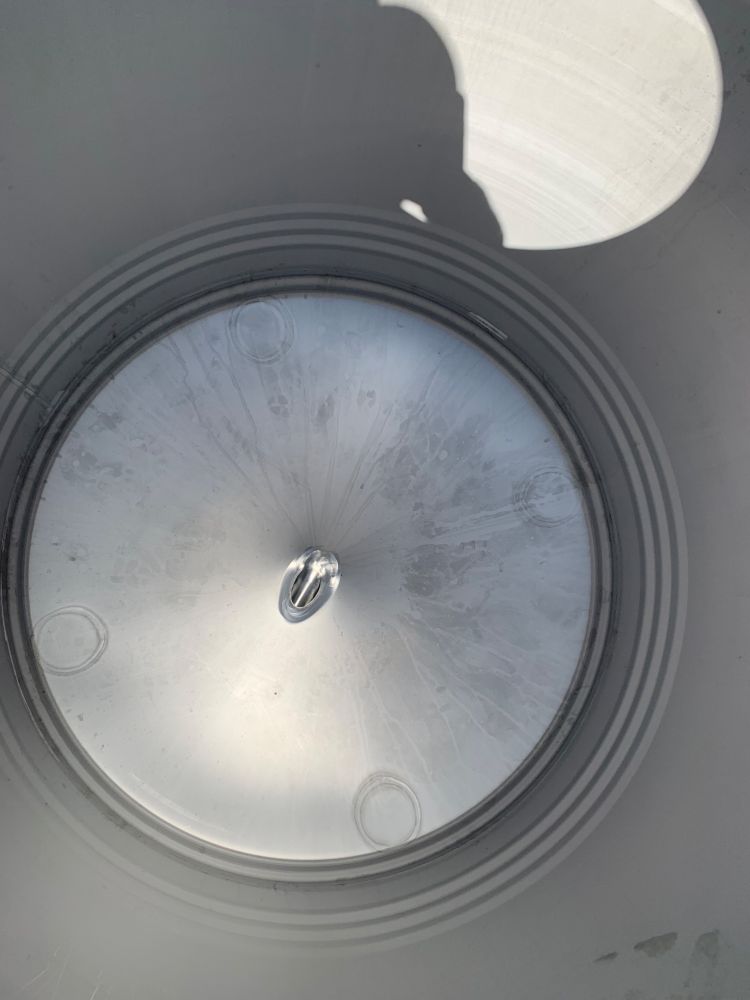

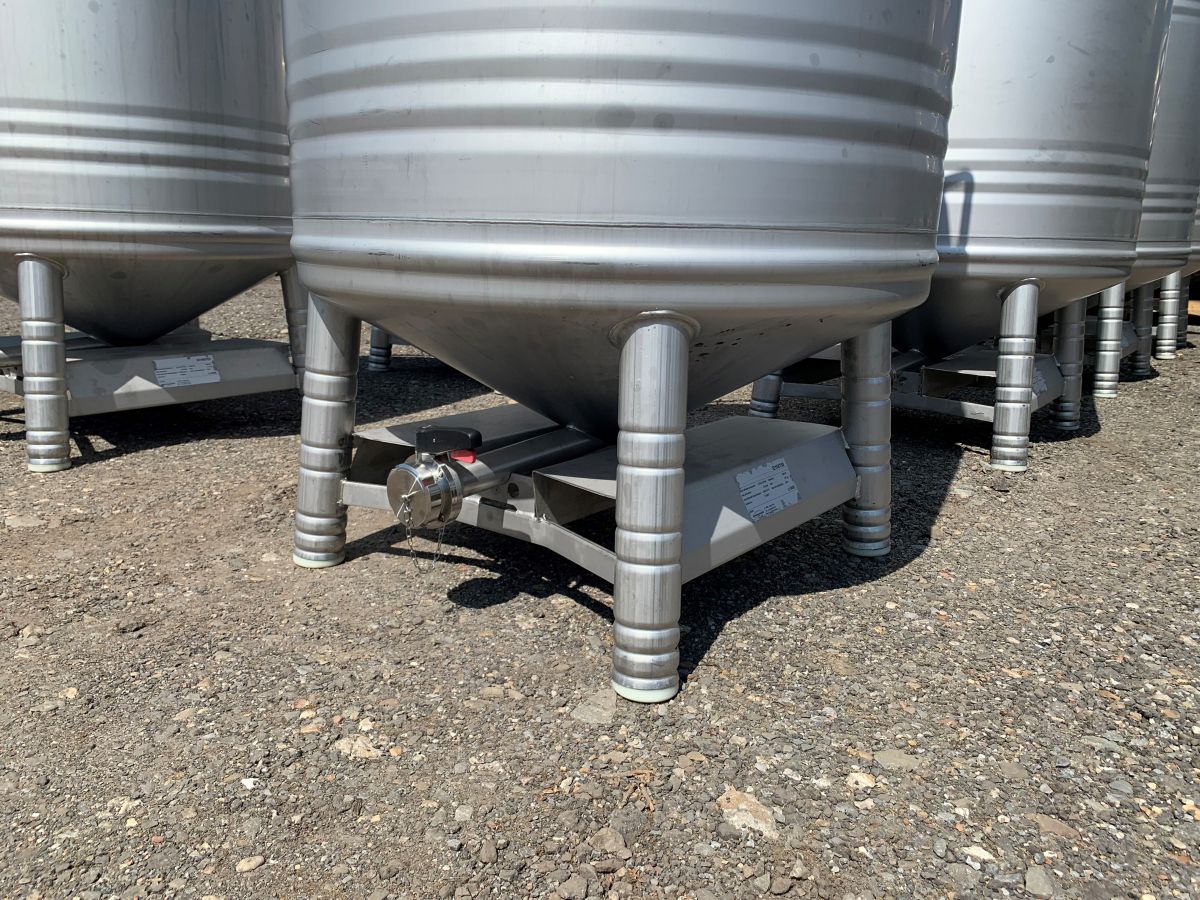

Bottom Type: strong conical
Vacuum Pressure: -15 Bar
Pressure Vessel: Yes
Heating / Cooling: No
Contact Surface: SS AISI 304L (V2A)
Volume in liters: 1000

Equipment

Agitator flange: No
Nameplate: Yes
Food-grade: Yes
Inspected by: TUV
Tank Outlet: inside Ø 50 mm
Technical Drawing Available: Yes

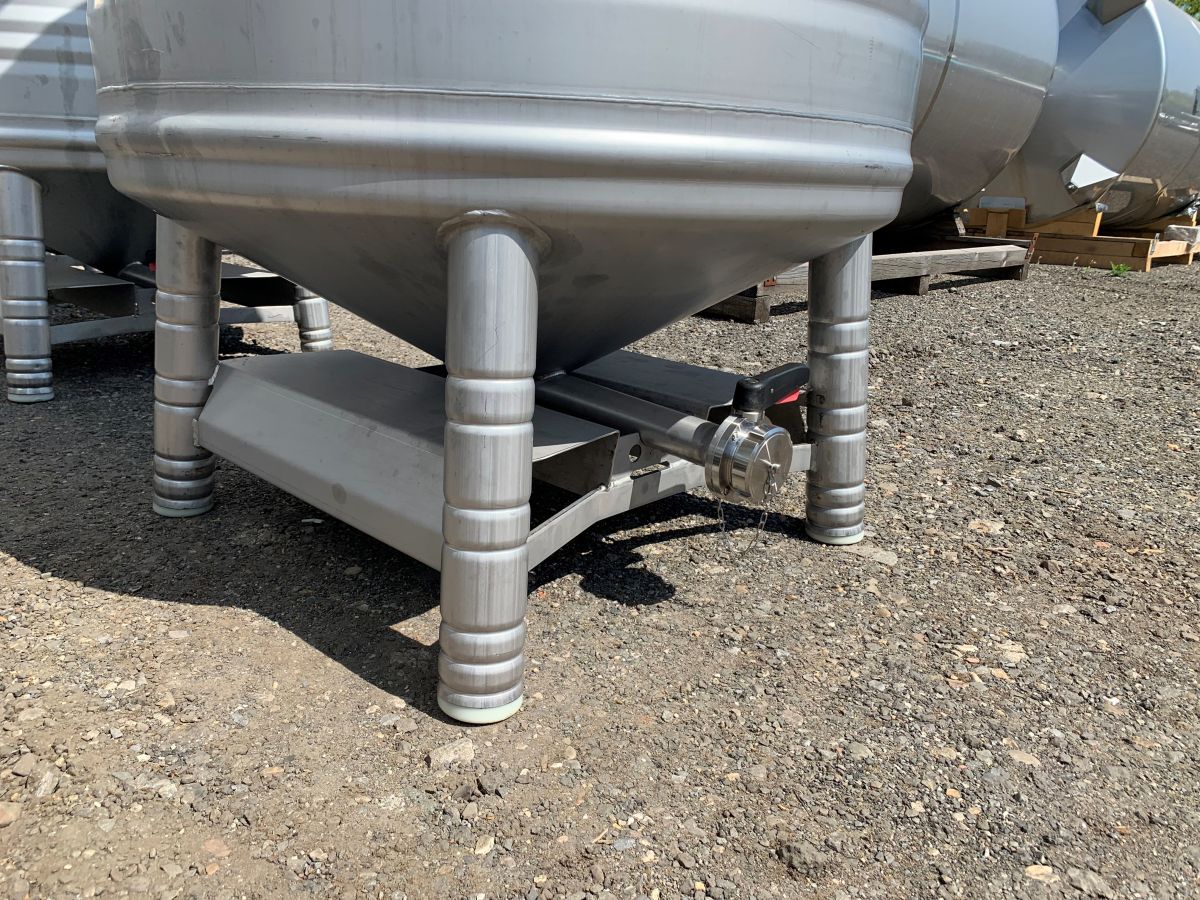

Outlet Type: DIN11851 male
Outlet Valve: Yes

Material Overview

Material: Stainless steel 304

Tank Dimensions

Cylinder Height: 965 mm
Outlet Height to Ground: 200 mm
Total Height: 1.840 mm
Outer diameter: 1.002 mm

Tjocklek på tank

Bottom: 2,50 mm
Cylinder: 2 mm
Top: 2 mm

Mer

Isolated: No
Weight: 180
