14000 liters tank in Stainless 304

14000 liters tank in Stainless 304

14000 liters tank in Stainless 304

Art.nr: 394001

100 000 SEK /st exkl moms

Isolated: Yes

material: Stainless steel 304

model: Vertical

Newly manufactured or second-hand: Used

Pressure tank:

Heating/cooling: No

Agitator: Yes

Stock balance:

in stock

Out of stock

14000 liters tank in Stainless 304

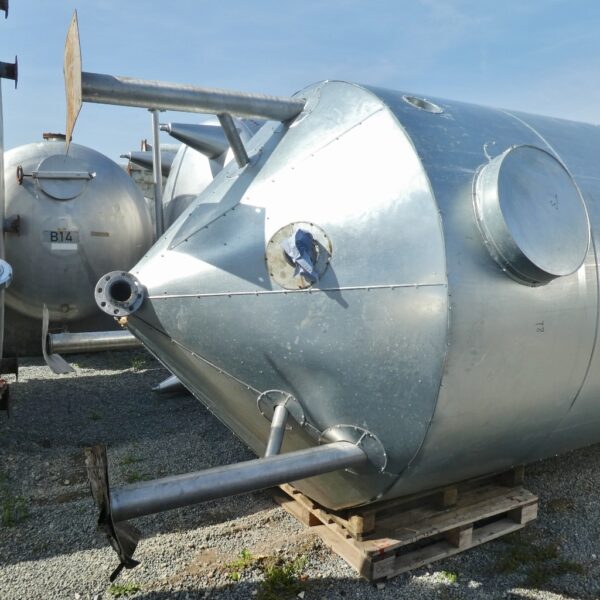

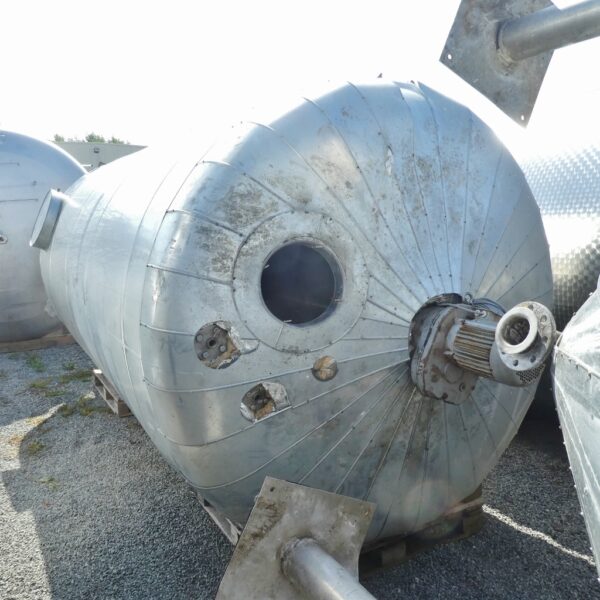

14000-liter Vertical tank in Stainless steel 304

This is a 14000-liter used tank, model Vertical, manufactured from Stainless steel 304. The insulated construction contributes to good temperature stability. A mixer is installed.

Working pressure: ATM - atmospheric.

The tank is suitable for industrial process environments where temperature stability are important properties.

The facts

Additional information

Additional information

Product Description

Material: Stainless steel 304
Model: Vertical
New / Used: Used
Operating Pressure in Tank: ATM – atmospheric
Configuration: insulated
Mobile Tank: No, it is not.

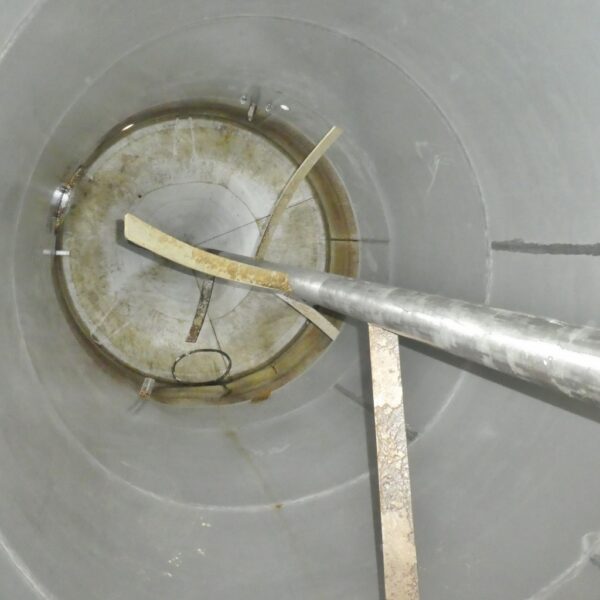

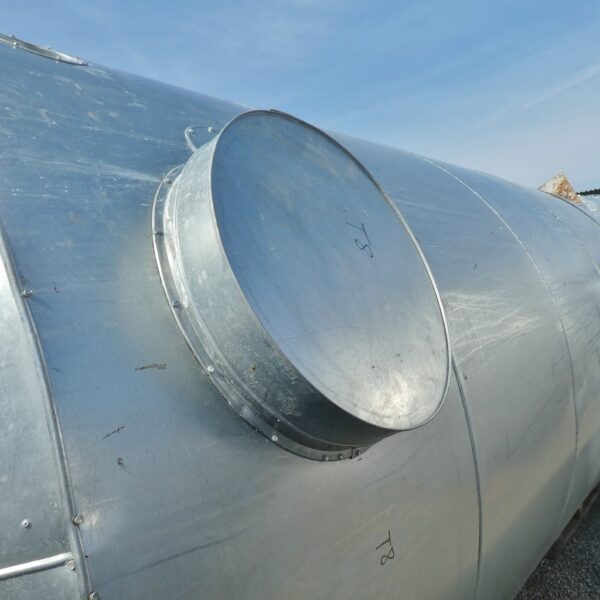

Övrig information: recycling industry; insulation jacket with dents and cut-outs; 1 opening appr. 310 mm in the upper bottom; feet plates bent; 1 tank with dents in the cylinder; the other tank with stronger adhesions

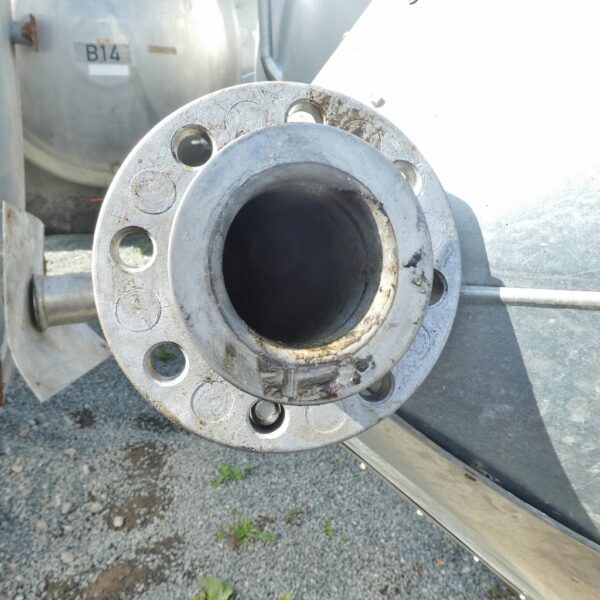

Additional Information2: inside and a hole in the outlet pipe; some residues of previous content; we can't give any guarantees about the agitator
Agitator: Yes
Complete Drainage: Yes
Heating / Cooling: No
Contact Surface: SS AISI 304 (V2A)
Volume in liters: 14000

Equipment

Product Dokument finns: No, it is not.
Agitator flange: No
Nameplate: No, it is not.
Technical Drawing Available: No, it is not.

Material Overview

Material: Stainless steel 304

Tank Dimensions

Cylinder Height: 4,000 mm
Internal diameter: 1,990 mm
Total Height: 6.200 mm
Outer diameter: 2,200 mm

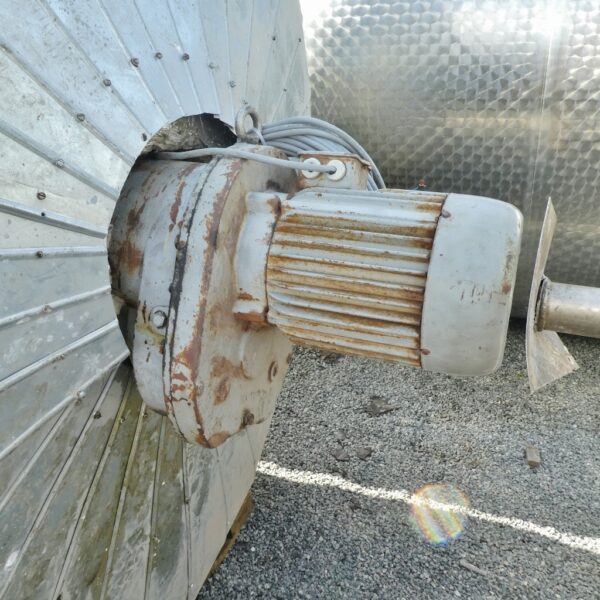

Stirrer

Power (kW): 2,20
Speed (RPM): 20

Mer

Isolated: Yes
