1855 liter tank in Acid-proof 316

1855 liter tank in Acid-proof 316

1855 liter tank in Acid-proof 316

Art.nr: 401963

177 000 SEK /st exkl moms

Isolated: Yes

Material: Acid-resistant 316

Model: Vertical

Newly manufactured or second-hand: Used

Pressure tank: Yes

Heating/cooling: Yes

Agitator: Yes

Stock balance:

in stock

Out of stock

1855 liter tank in Acid-proof 316

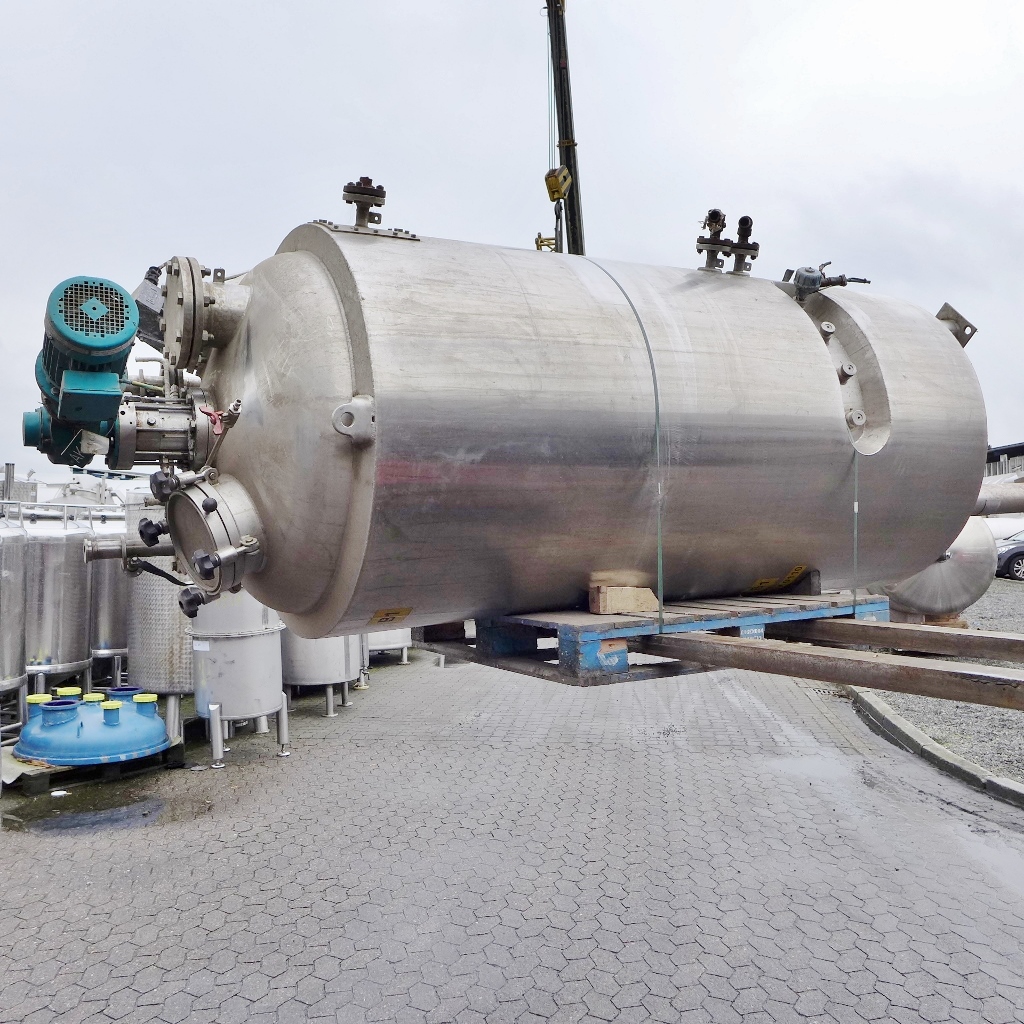

1855-liter Vertical tank in Acid-resistant 316

This is a 1855-liter used tank, model Vertical, manufactured from Acid-resistant 316. The insulated construction contributes to good temperature stability. The tank is equipped for temperature-controlled processes. A mixer is installed. The tank is designed as a pressure vessel.

Overpressure: 4 bars. Working pressure: pressure. Temperature range to 150 °C. Nameplate: Yes.

The tank is suitable for industrial process environments where corrosion resistance, hygiene, operational reliability, temperature stability and temperature control are important properties.

The facts

Additional information

Additional information

Product Description

Material: Acid-resistant 316
Model: Vertical
New / Used: Used
Operating Pressure in Tank: pressure
Configuration: insulated with heat-exchanger
Max. Service Temperature: 150 °C
Mobile Tank: No, it is not.

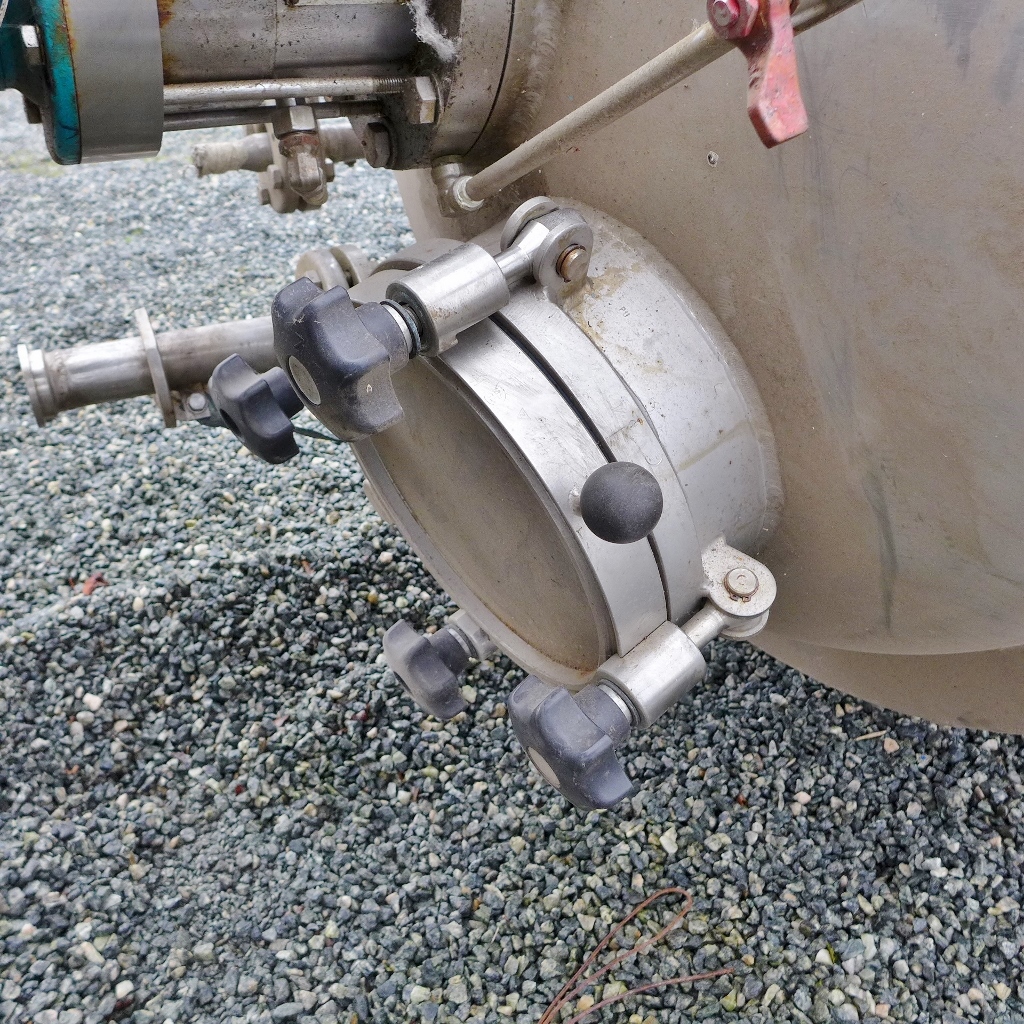

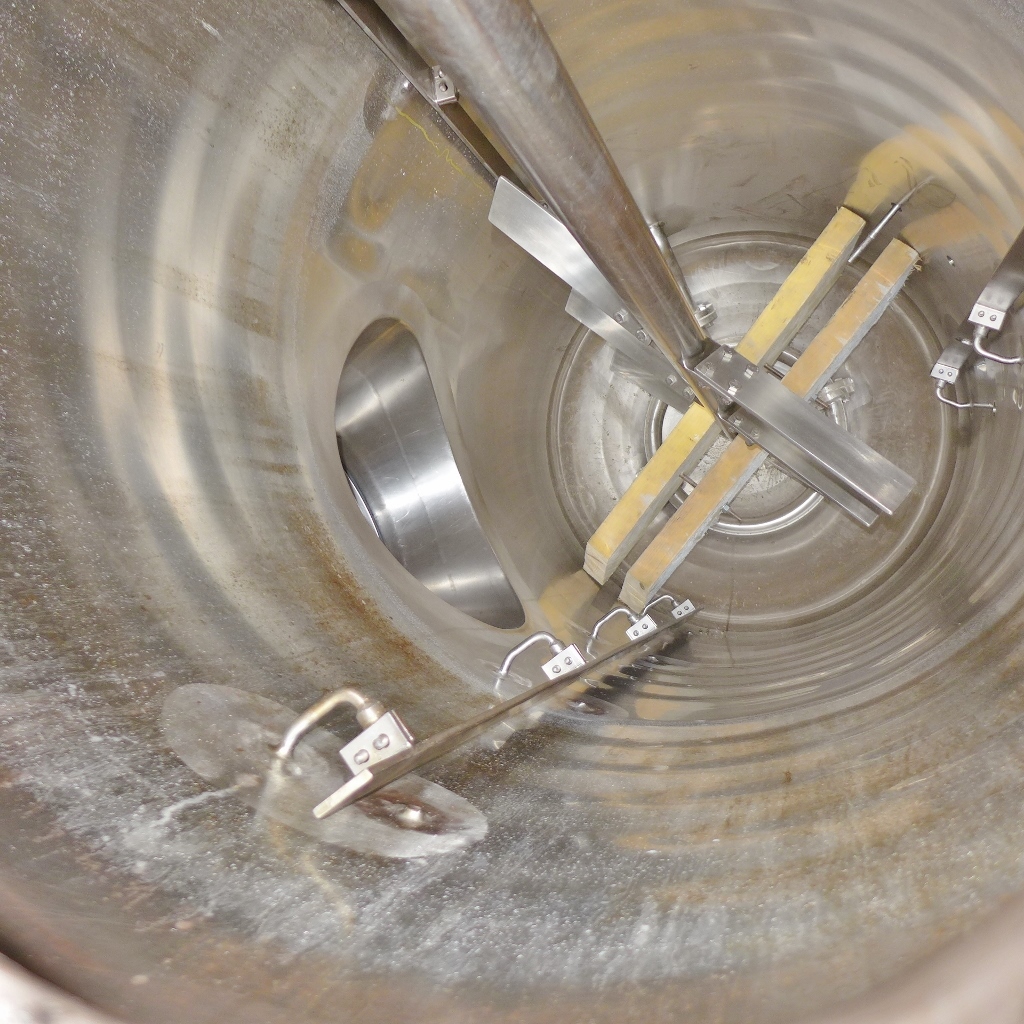

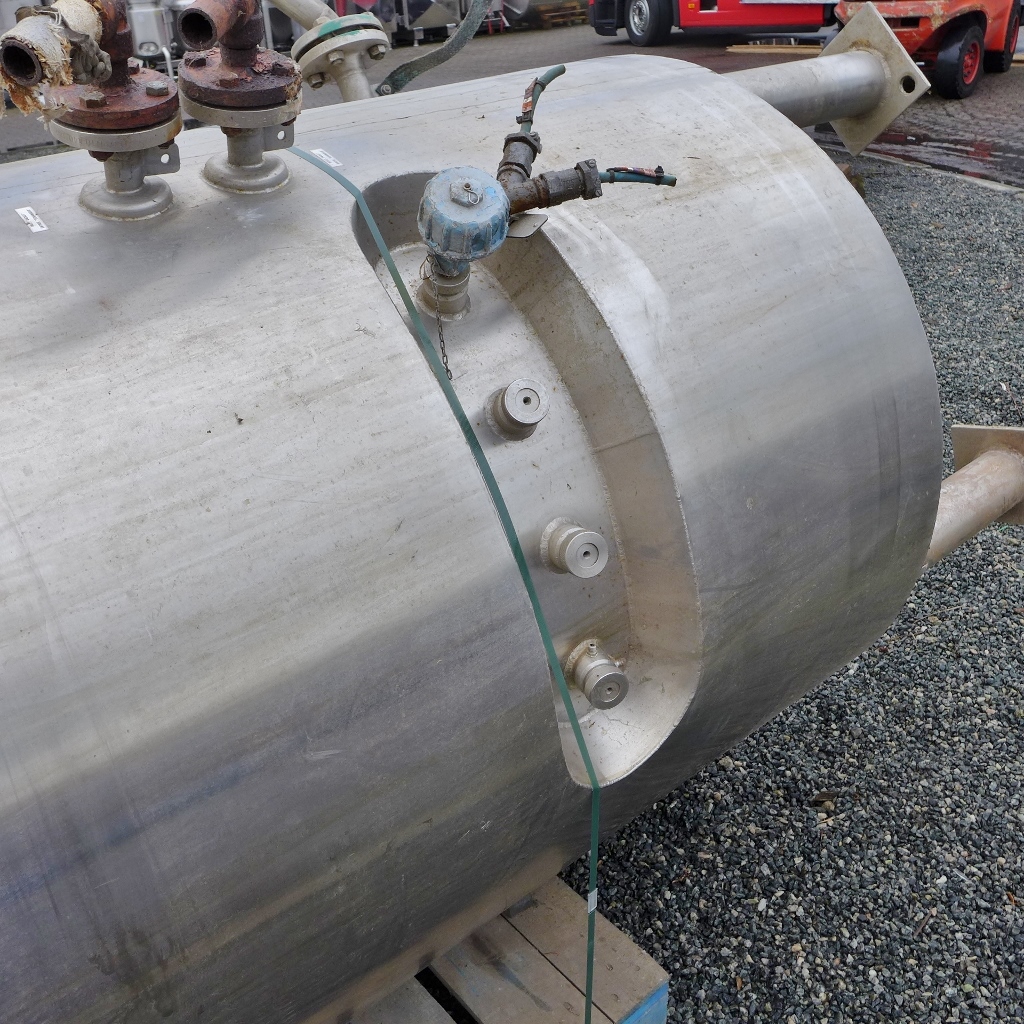

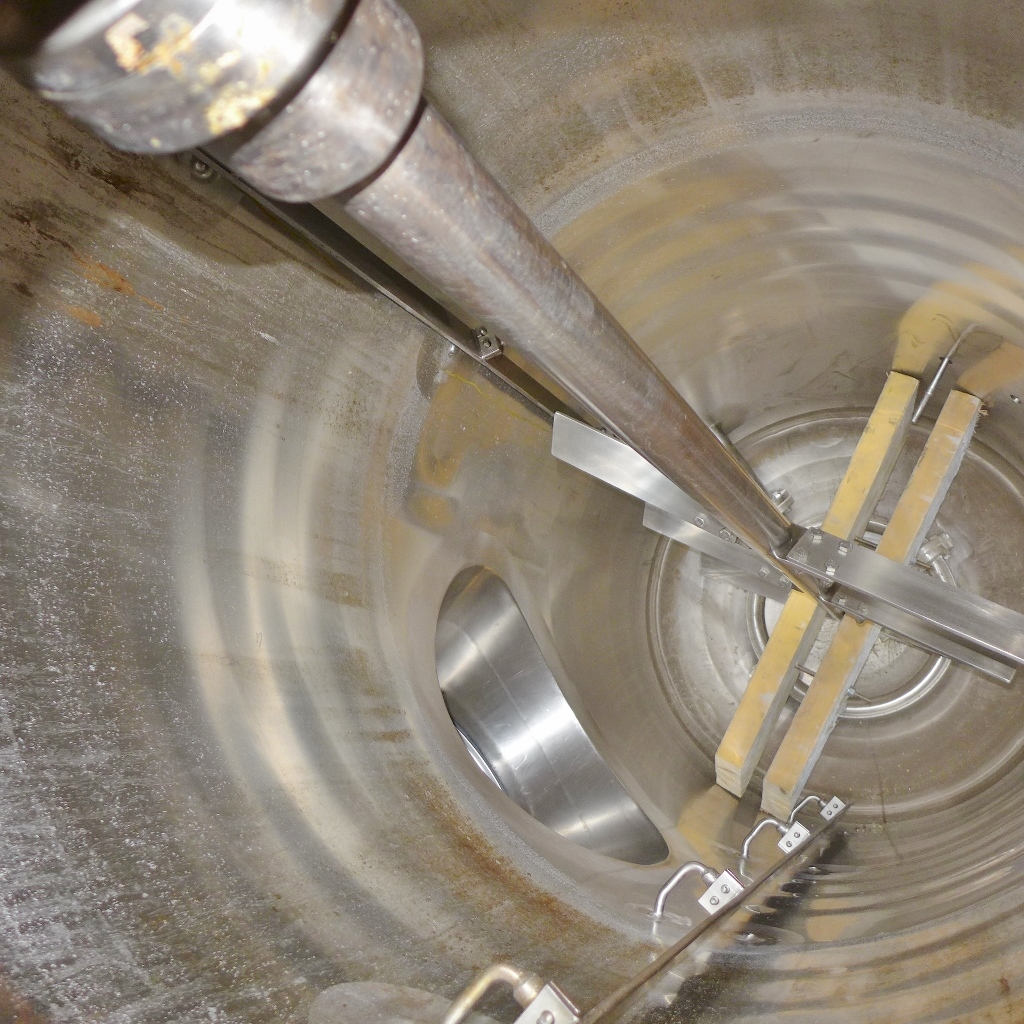

Övrig information: Pharmacy; 1 manhole diameter approx. 400 mm in the cylinder, 1 hand hole diameter approx. 250 mm in the upper bottom; 1 perforated pipe inside the lower bottom area (see photos) ; some residues of

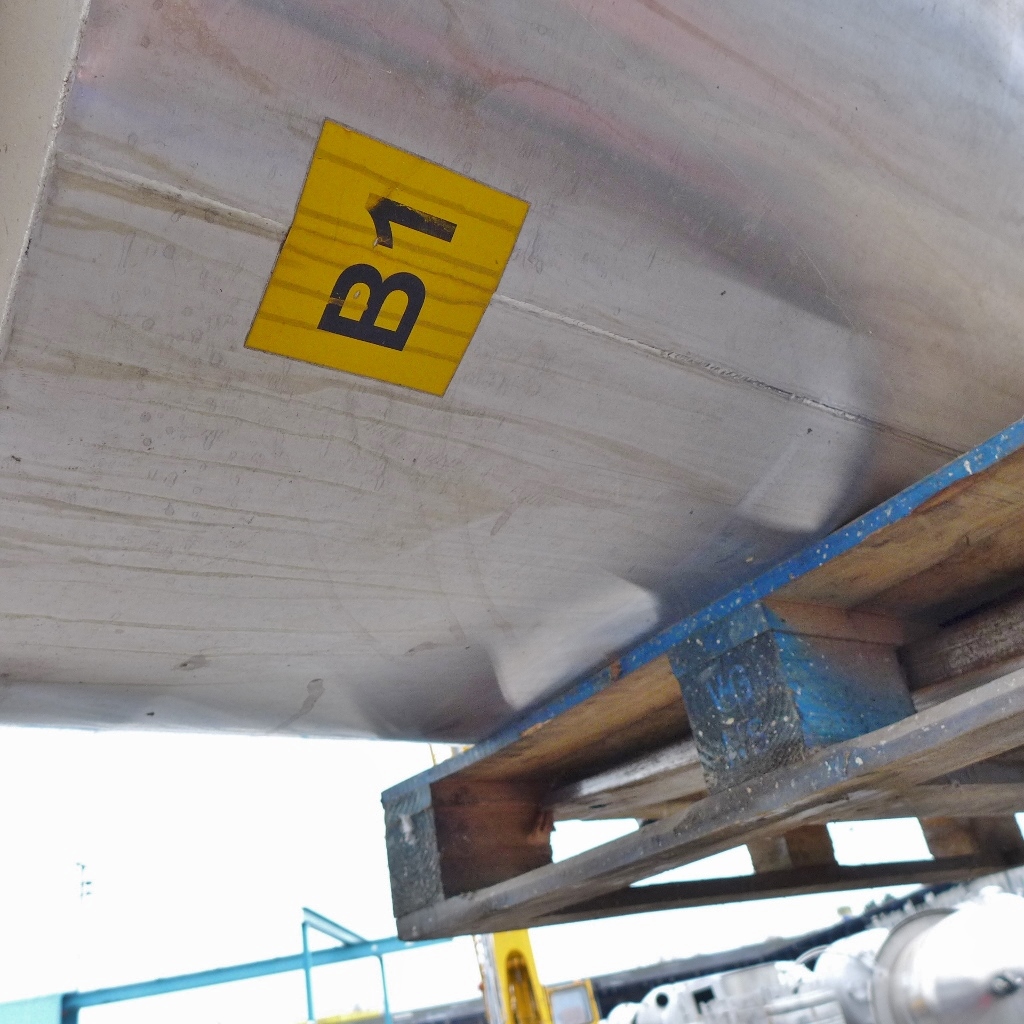

Additional Information2: previous content;bump at the insulation jacket; we can't give any guarantees about the heating/cooling jacket; we can't give any guarantees about the agitator
Agitator: Yes
Overpressure: 4 bars
Complete Drainage: Yes
Pressure Vessel: Yes
Heating / Cooling: Yes
Contact Surface: SS AISI 316 (V4A)
Volume in liters: 1855

Equipment

Product Dokument finns: No, it is not.
Agitator flange: No

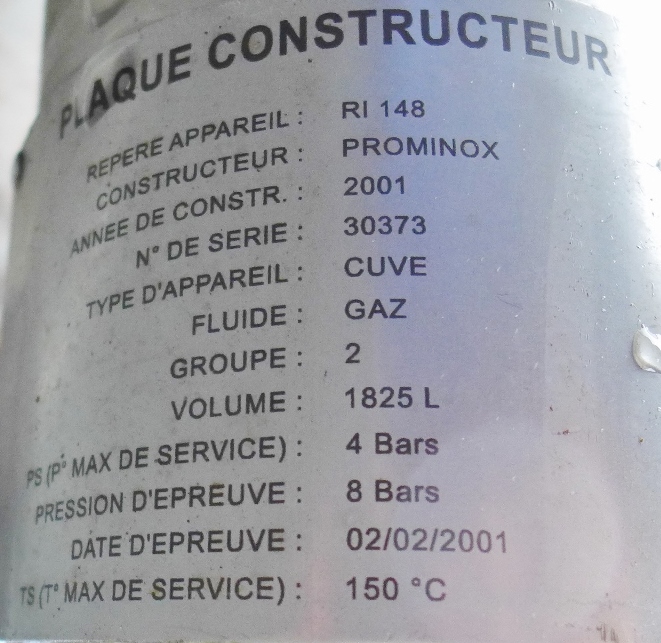

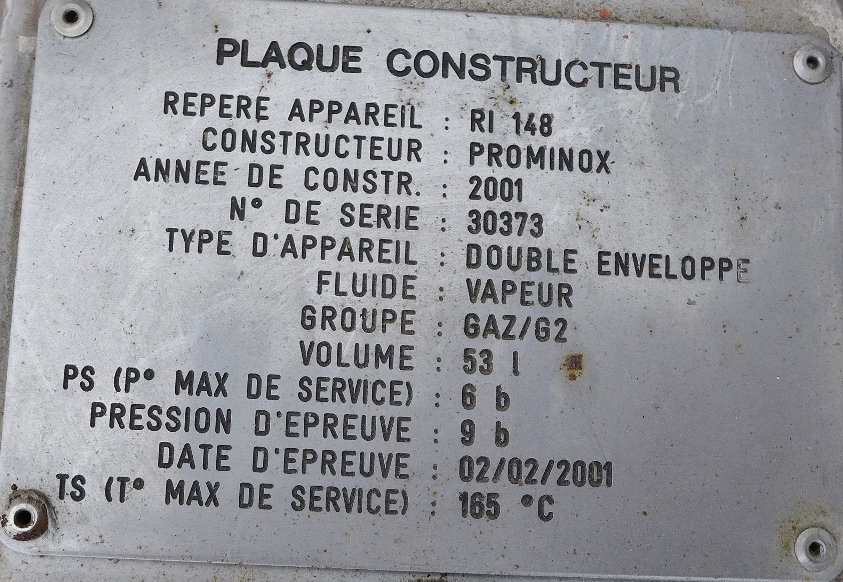

Nameplate: Yes
Technical Drawing Available: No, it is not.

Material Overview

Material: Acid-resistant 316

Tank Dimensions

Internal diameter: 1.000 mm
Total Height: 3,550 mm
Outer diameter: 1.160 mm

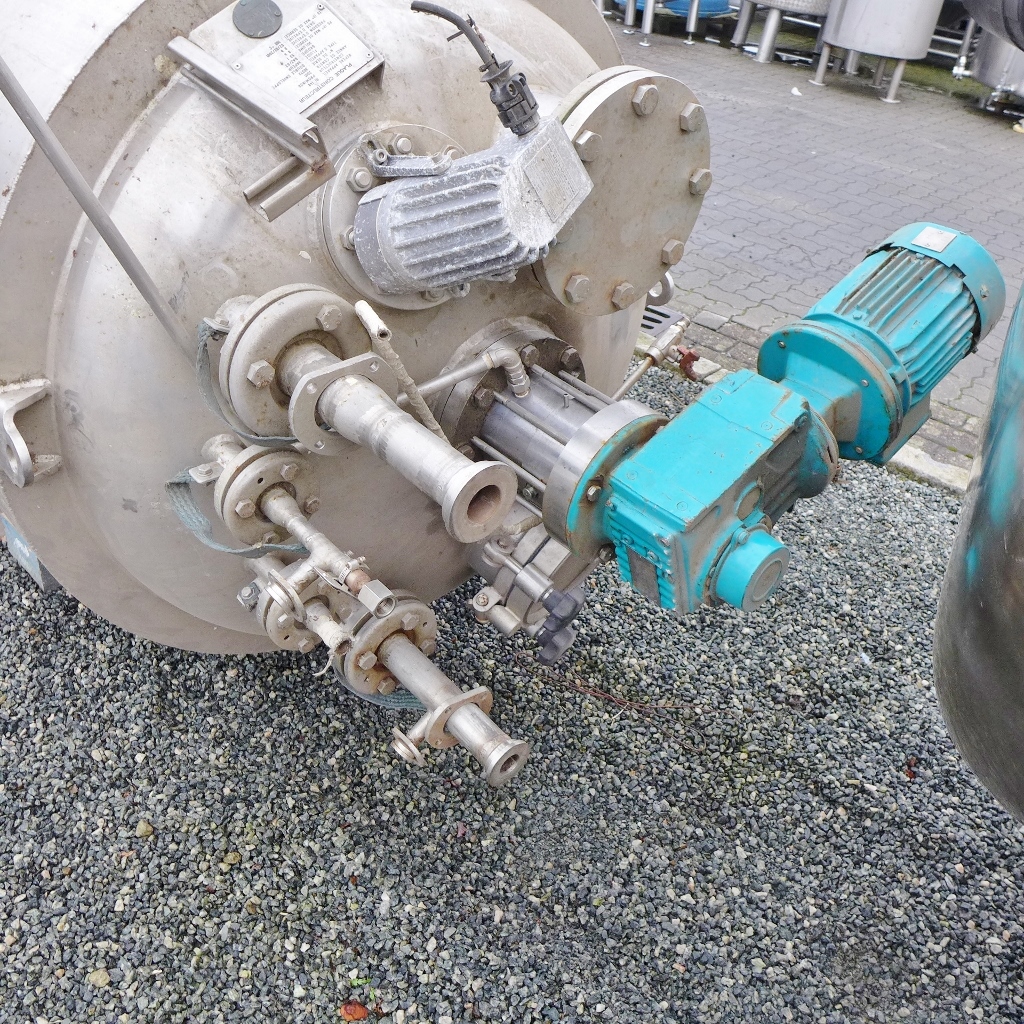

Stirrer

Power (kW): 1,10
Speed (RPM): 40

Mer

Heat Exchanger: RVS 304
Isolated: Yes
