27550 liter tank in Syrafast 316

Name: Buy 27550 liters tank in Acid-proof 316 at good price online
SKU: 475576
Price: 277000 SEK
Availability: OutOfStock

Art.nr: 475576

277 000 SEK /st exkl moms

Isolated: No

material:

model: Vertical

Newly manufactured or second-hand: Used

Pressure tank: Yes

Heating/cooling: No

Agitator: Yes

Stock balance:

in stock

Out of stock

27550-liter Vertical tank

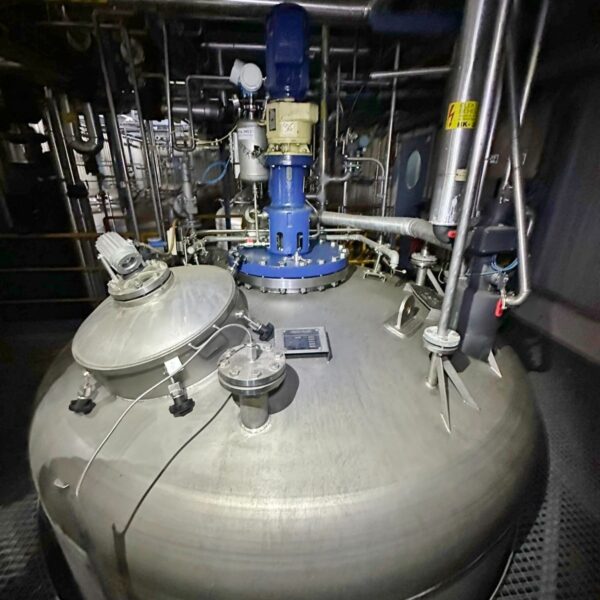

This is a 27550-liter used tank, model Vertical. A mixer is installed. The tank is designed as a pressure vessel.

Overpressure: 1 bar. Underpressure/vacuum: 0,25 bar. Working pressure: pressure and vacuum. Temperature range to 100 °C. Nameplate: Yes.

Additional information

Product Description

Model: Vertical
New / Used: Used
Operating Pressure in Tank: pressure and vacuum
Configuration: single-skin
Max. Service Temperature: 100 °C
Mobile Tank: No, it is not.
Övrig information: Total height without taking the agitator into account; we can't give any guarantees about the agitator
Agitator: Yes
Overpressure: 1 bar
Complete Drainage: Yes
Vacuum Pressure: 0,25 bar
Pressure Vessel: Yes
Heating / Cooling: No
Volume in liters: 27550

Equipment

Product Dokument finns: No, it is not.
Agitator flange: No
Nameplate: Yes
Technical Drawing Available: No, it is not.

Tank Dimensions

Cylinder Height: 4.570 mm
Internal diameter: 2.600 mm
Total Height: 6.450 mm

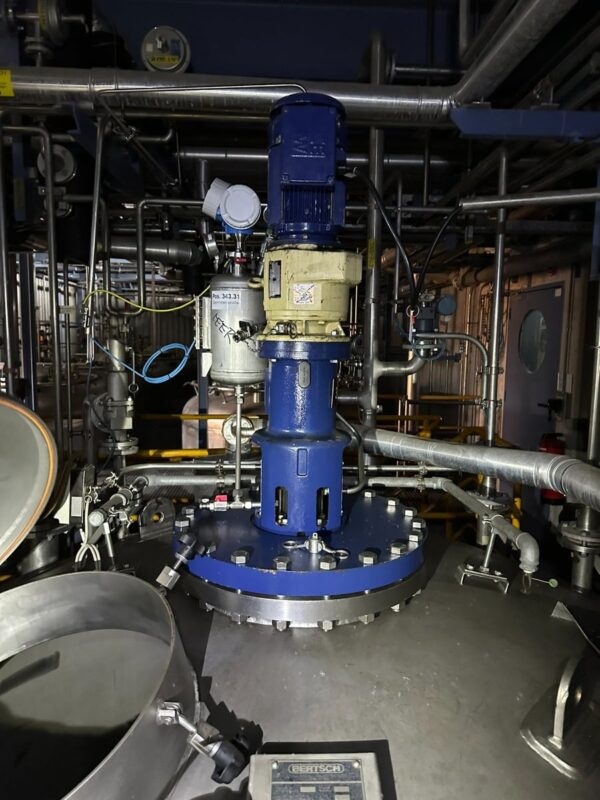

Stirrer

Power (kW): 2,50
Speed (RPM): 78

Tjocklek på tank

Bottom: 7 mm
Cylinder: 5 mm
Top: 6 mm
