29250 liter tank in Syrafast 316

Name: 29250 liter tank in Syrafast 316 - High quality at a good price
SKU: 475666
Price: 247000 SEK
Availability: OutOfStock

Art.nr: 475666

247 000 SEK /st exkl moms

Isolated: No

Material: Acid-resistant 316

Model: Horizontal

Newly manufactured or second-hand: Used

Pressure tank: Yes

Heating/cooling: No

Agitator: No

Stock balance:

in stock

Out of stock

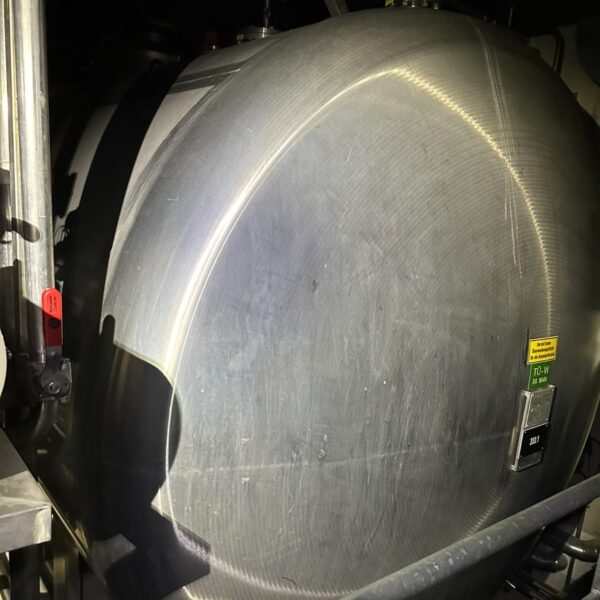

29250-liter Horizontal tank in Acid-resistant 316

This is a 29250-liter used tank, model Horizontal, manufactured from Acid-resistant 316. The tank is designed as a pressure vessel.

Overpressure: 1 bar. Underpressure/vacuum: 0,25 bar. Working pressure: pressure and vacuum. Temperature range to 100 °C. Nameplate: Yes.

The tank is suitable for industrial process environments where corrosion resistance, hygiene and operational reliability are important properties.

Additional information

Product Description

Material: Acid-resistant 316
Model: Horizontal
New / Used: Used
Operating Pressure in Tank: pressure and vacuum
Configuration: single-skin
Max. Service Temperature: 100 °C
Mobile Tank: No, it is not.

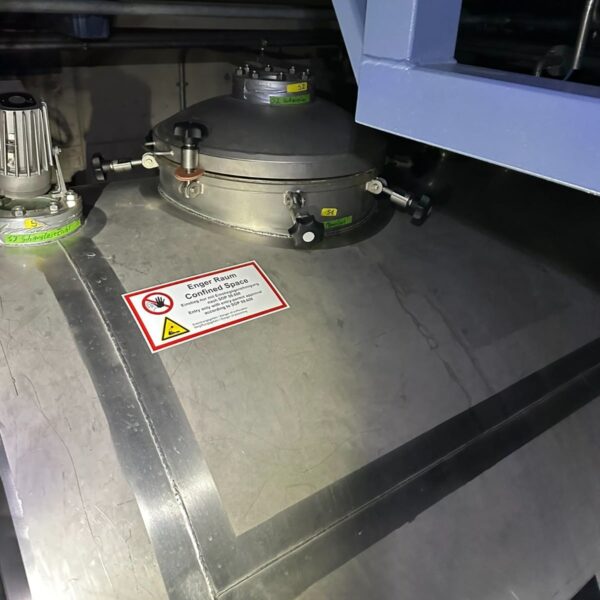

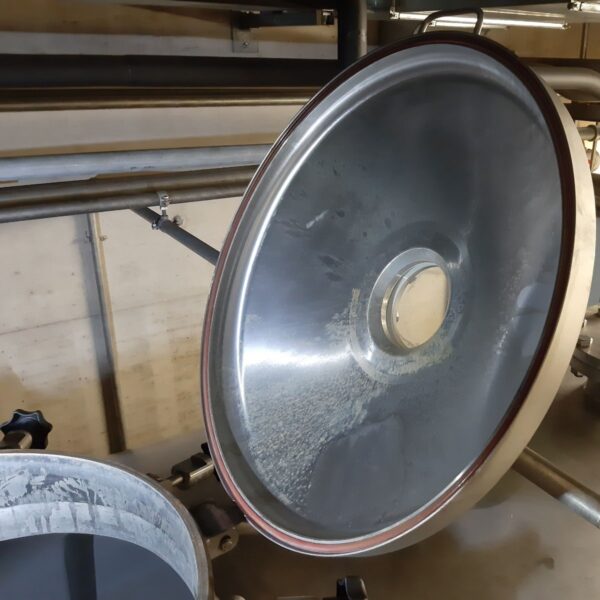

Övrig information: Manhole diameter: approx. 600 mmm; saddles made of Aisi 304
Agitator: No
Overpressure: 1 bar
Complete Drainage: Yes
Vacuum Pressure: 0,25 bar
Pressure Vessel: Yes
Heating / Cooling: No
Contact Surface: SS AISI 316 (V4A)
Volume in liters: 29250

Equipment

Product Dokument finns: No, it is not.
Agitator flange: No

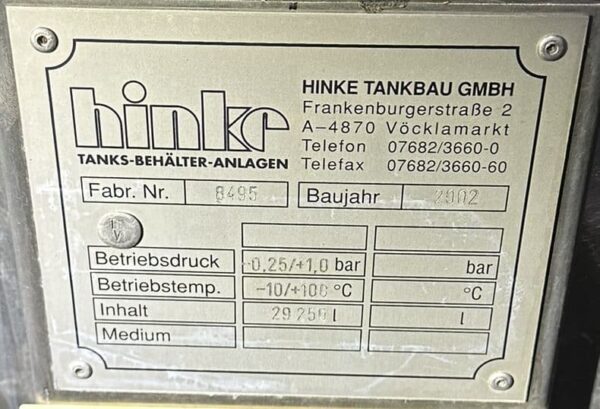

Nameplate: Yes
Technical Drawing Available: No, it is not.

Material Overview

Material: Acid-resistant 316

Tank Dimensions

Internal diameter: 2,400 mm

Mer

Isolated: No
