3331 liter tank in Stainless 304

Name: Buy 3331 liter tank in Stainless steel 304 at great price online
SKU: 394433
Price: 133000 SEK
Availability: OutOfStock

Art.nr: 394433

133 000 SEK /st exkl moms

Isolated: No

material: Stainless steel 304

model: Vertical

Newly manufactured or second-hand: Used

Pressure tank:

Heating/cooling: Yes

Agitator: No

Stock balance:

in stock

Out of stock

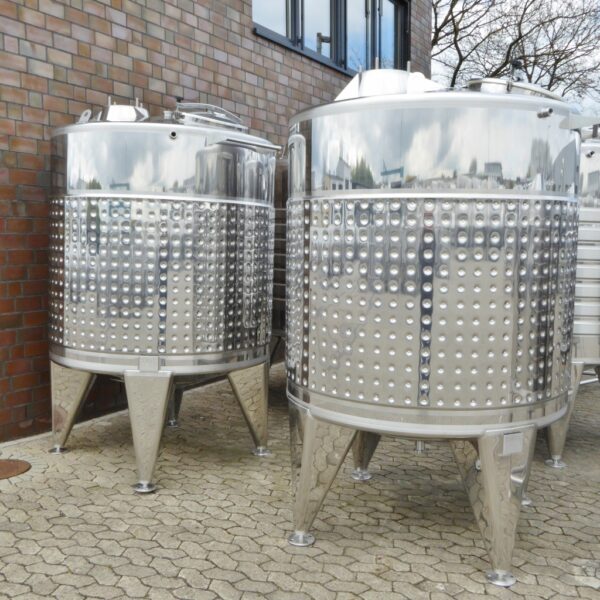

3331-liter Vertical tank in Stainless steel 304

This is a 3331-liter used tank, model Vertical, manufactured from Stainless steel 304. The tank is equipped for temperature-controlled processes.

Working pressure: ATM - atmospheric. Temperature range to 90 °C. Nameplate: Yes.

The tank is suitable for industrial process environments where temperature control are important properties.

Additional information

Product Description

Material: Stainless steel 304
Model: Vertical
New / Used: Used
Operating Pressure in Tank: ATM – atmospheric
Configuration: single jacketed with heat-exchanger
Max. Service Temperature: 90 °C
Mobile Tank: No, it is not.
Agitator: No
Complete Drainage: Yes
Heating / Cooling: Yes
Contact Surface: SS AISI 304 (V2A)
Volume in liters: 3331

Equipment

Product Dokument finns: No
Agitator flange: Yes
Nameplate: Yes
Technical Drawing Available: No, it is not.

Material Overview

Material: Stainless steel 304

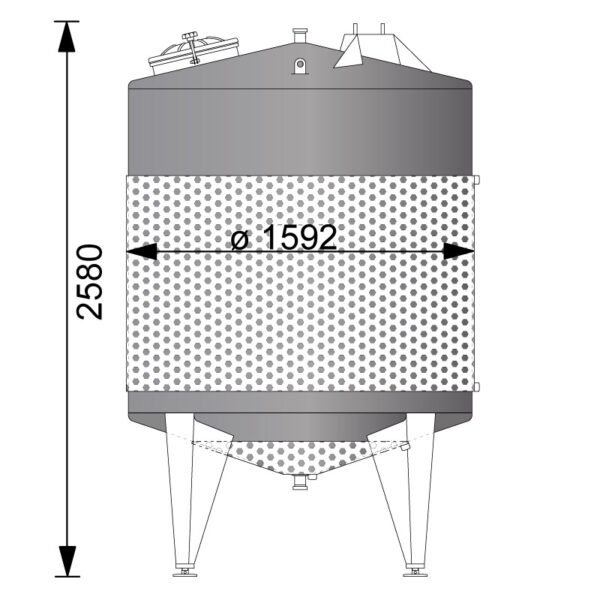

Tank Dimensions

Cylinder Height: 1.500 mm
Internal diameter: 1.592 mm
Total Height: 2.580 mm

Tjocklek på tank

Bottom: 3 mm
Cylinder: 3 mm
Top: 2,50 mm

Mer

Heat Exchanger: RVS 304
Isolated: No
