4600 liter tank in Acid-proof 316

Name: 4600 liters tank in Syrafast 316 at a good price - delivered ...
SKU: 408200
Price: 64000 SEK
Availability: OutOfStock

Art.nr: 408200

64 000 SEK /st exkl moms

Isolated: No

material: Acid-resistant 316

model: Vertical

Newly manufactured or second-hand: Used

Pressure tank: Yes

Heating/cooling: No

Agitator: No

Stock balance:

in stock

Out of stock

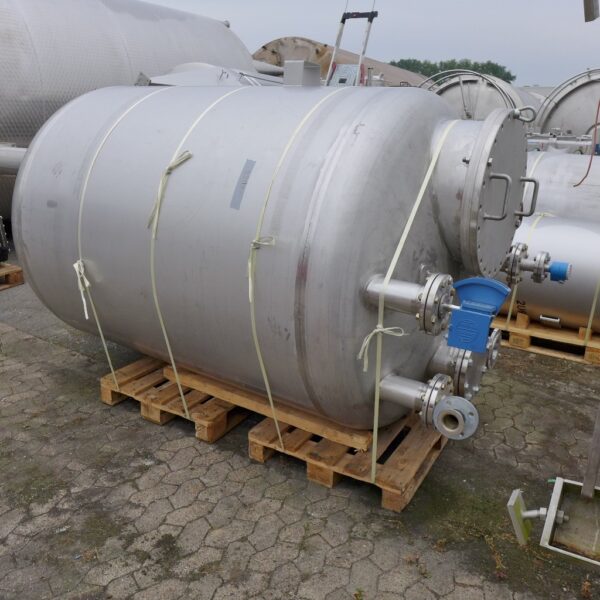

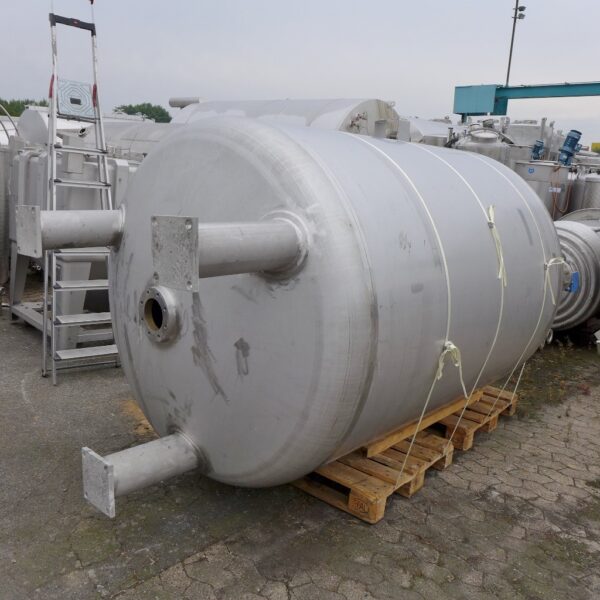

4600-liter Vertical tank in Acid-resistant 316

This is a 4600-liter used tank, model Vertical, manufactured from Acid-resistant 316. The tank is designed as a pressure vessel.

Overpressure: 0,20 bar. Underpressure/vacuum: 0.46 bar. Working pressure: ATM - atmospheric. Temperature range to 50 °C. Nameplate: Yes.

The tank is suitable for industrial process environments where corrosion resistance, hygiene and operational reliability are important properties.

Additional information

Product Description

Material: Acid-resistant 316
Model: Vertical
New / Used: Used
Operating Pressure in Tank: ATM – atmospheric
Configuration: single-skin
Max. Service Temperature: 50 °C
Mobile Tank: No, it is not.

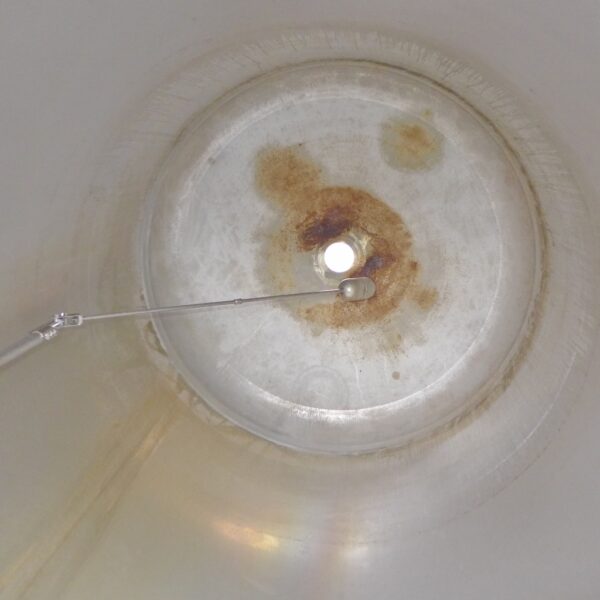

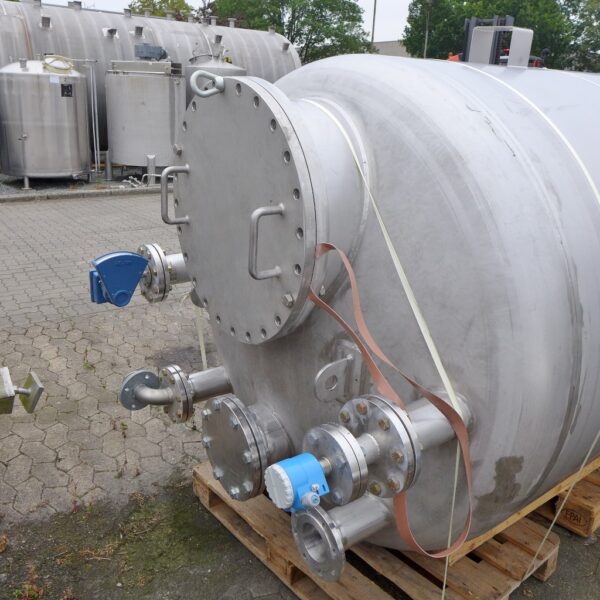

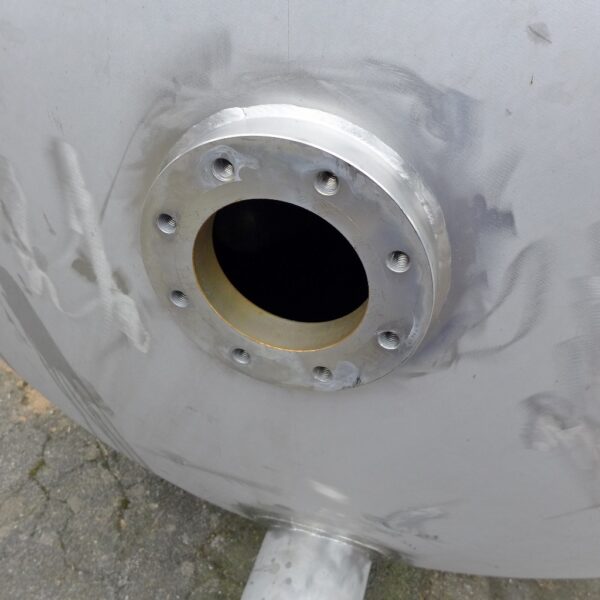

Övrig information: Pharmaceutical Chemistry ; Manhole diameter appr. 585 mm; some residues of previous content
Agitator: No
Overpressure: 0,20 bar
Complete Drainage: No, it is not.
Vacuum Pressure: 0.46 bar
Pressure Vessel: Yes
Heating / Cooling: No
Contact Surface: SS AISI 316 (V4A)
Volume in liters: 4600

Equipment

Product Dokument finns: No, it is not.
Agitator flange: No

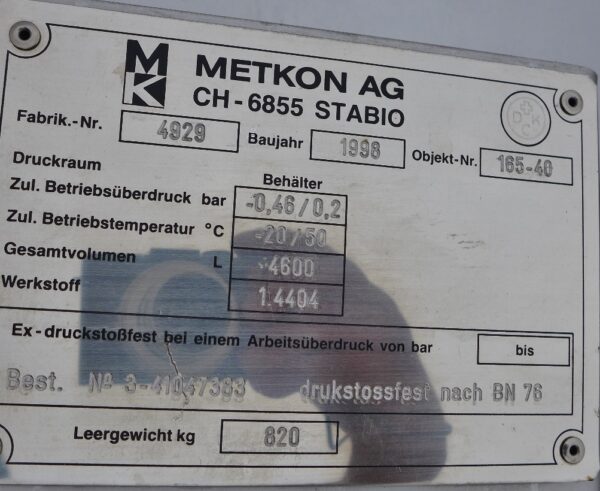

Nameplate: Yes
Technical Drawing Available: No, it is not.

Material Overview

Material: Acid-resistant 316

Tank Dimensions

Cylinder Height: 1.800 mm
Internal diameter: 1.590 mm
Total Height: 3.150 mm
