50000 liters tank in Stainless 304

Name: Buy 50000 liters tank in Stainless steel 304 at good price online
SKU: 483186
Price: 665000 SEK
Availability: InStock

Art.nr: 483186

665 000 SEK /st exkl moms

Isolated: Yes

Material: Stainless steel 304

Model: Vertical

Newly manufactured or second-hand: Used

Pressure tank:

Heating/cooling: Yes

Agitator: No

Stock balance:

1 in stock

Download PDF

50000 liters tank in Stainless 304

50000-liter Vertical tank in Stainless steel 304

This is a 50000-liter used tank, model Vertical, manufactured from Stainless steel 304. The insulated construction contributes to good temperature stability. The tank is equipped for temperature-controlled processes.

Working pressure: ATM - atmospheric. Temperature range to 80 °C.

The tank is suitable for industrial process environments where temperature stability and temperature control are important properties.

The facts

Additional information

Additional information

Product Description

Material: Stainless steel 304
Model: Vertical
New / Used: Used
Operating Pressure in Tank: ATM – atmospheric
Configuration: insulated with heat-exchanger
Max. Service Temperature: 80 °C
Mobile Tank: No, it is not.

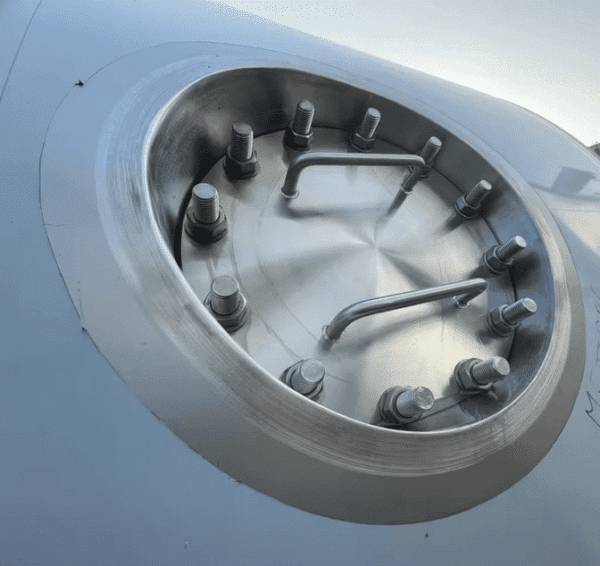

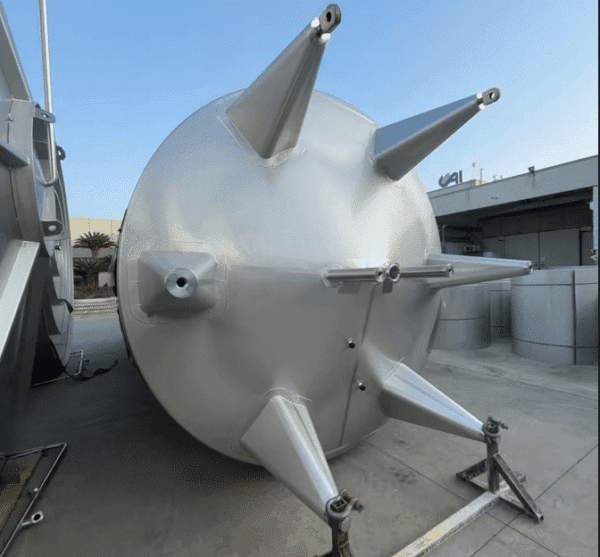

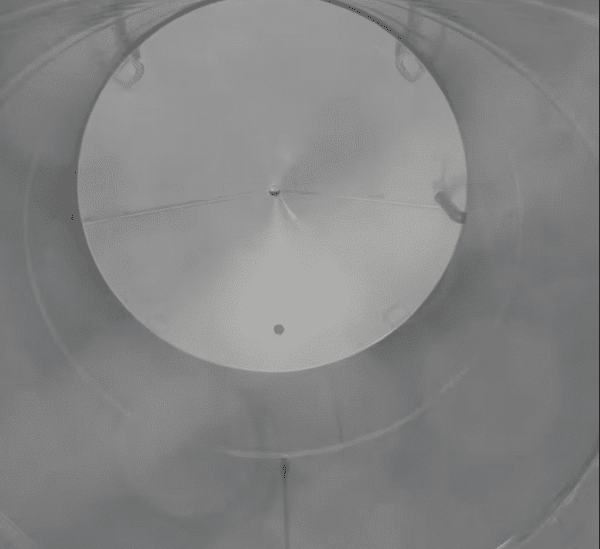

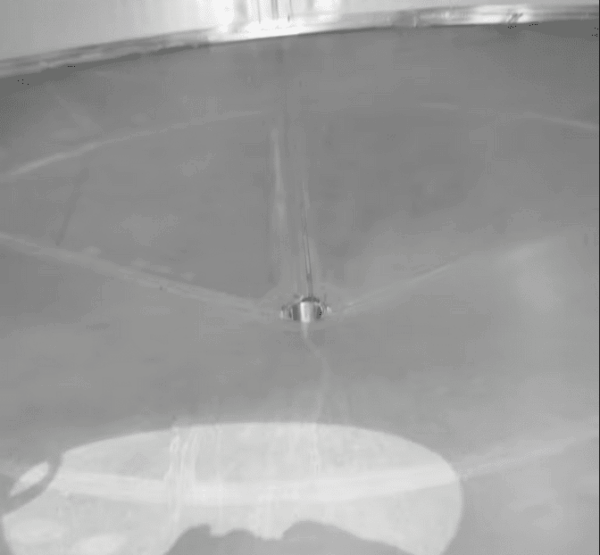

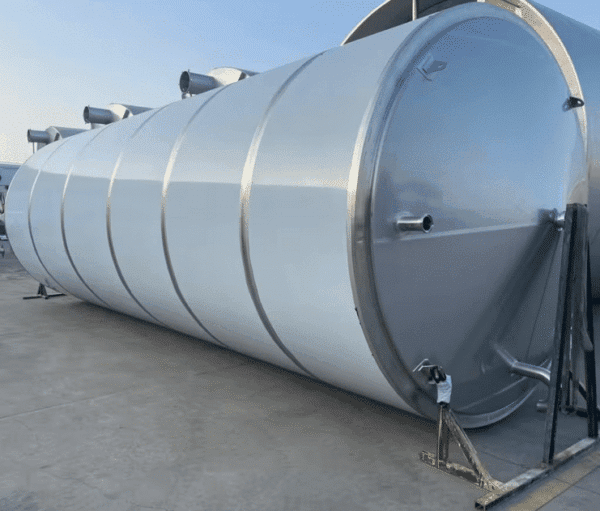

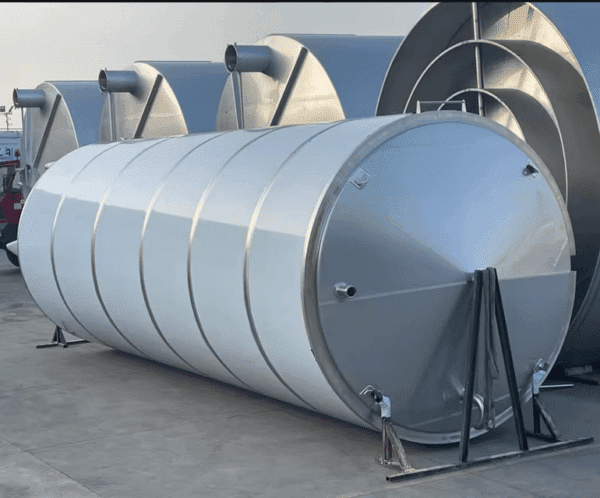

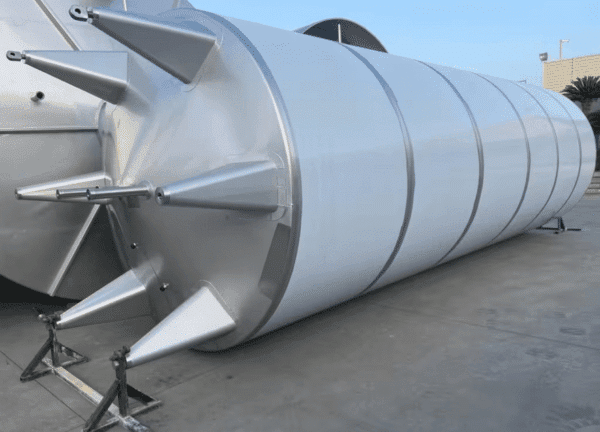

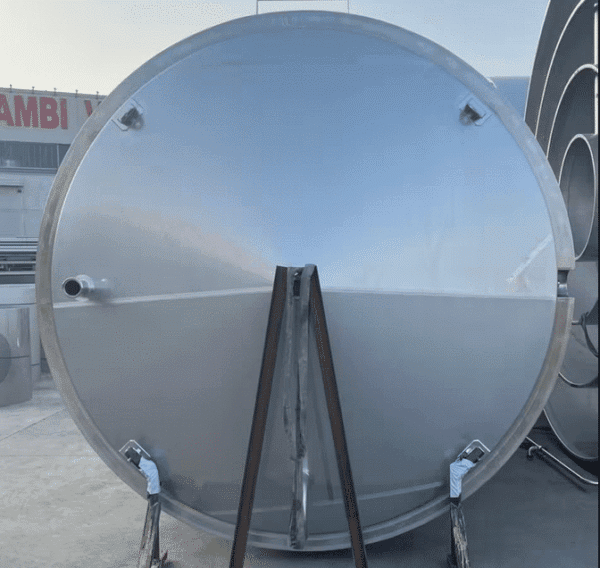

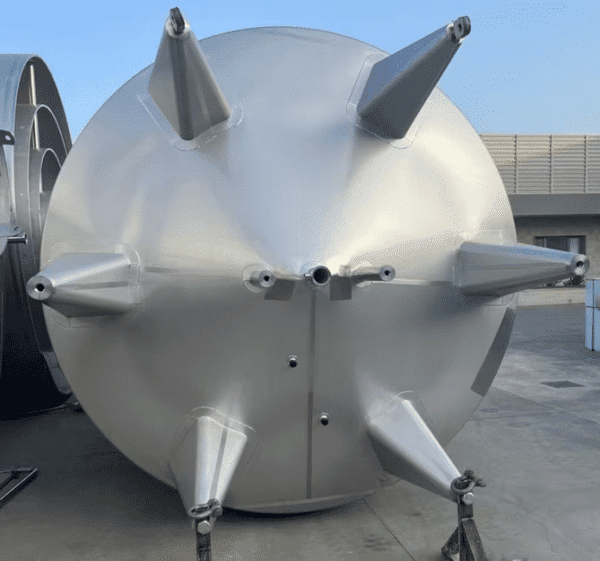

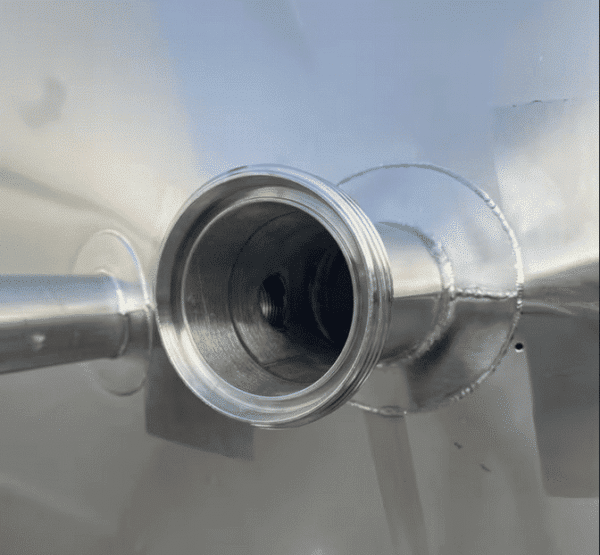

Övrig information: Pictures show the smaller 31,000 liter version (15487) of the tank; heating jacket approx. 3,930 mm of the lower cylinder height; manhole approx. 430 x 540 mm; tank is currently suspended in a
Agitator: No
Complete Drainage: Yes
Heating / Cooling: Yes
Contact Surface: SS AISI 304 (V2A)
Volume in liters: 50000

Equipment

Product Dokument finns: No, it is not.
Agitator flange: Yes
Nameplate: No, it is not.
Technical Drawing Available: No, it is not.

Material Overview

Material: Stainless steel 304

Tank Dimensions

Cylinder Height: 8,000 mm
Internal diameter: 2,800 mm
Total Height: 9,900 mm
Outer diameter: 3,000 mm

Tjocklek på tank

Bottom: 5 mm
Cylinder: 3 mm
Top: 4 mm

Mer

Isolated: Yes
