68155 liter tank in Syrafast 316

68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
Art.nr: 475510

443 000 SEK /st exkl moms

Isolated: No
material: Acid-resistant 316
model: Vertical
Newly manufactured or second-hand: Used
Pressure tank: Yes
Heating/cooling: No
Agitator: Yes

Stock balance:

in stock

Out of stock

Download PDF
Send a request
See our references >
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316
68155 liter tank in Syrafast 316

68155 liter tank in Syrafast 316

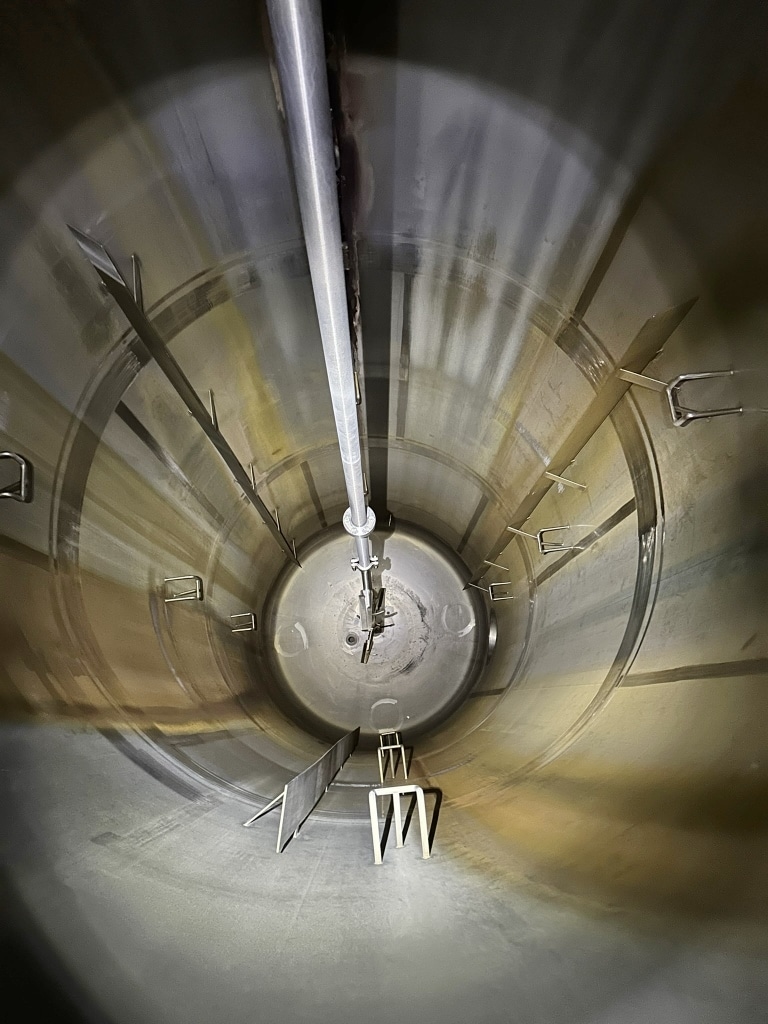

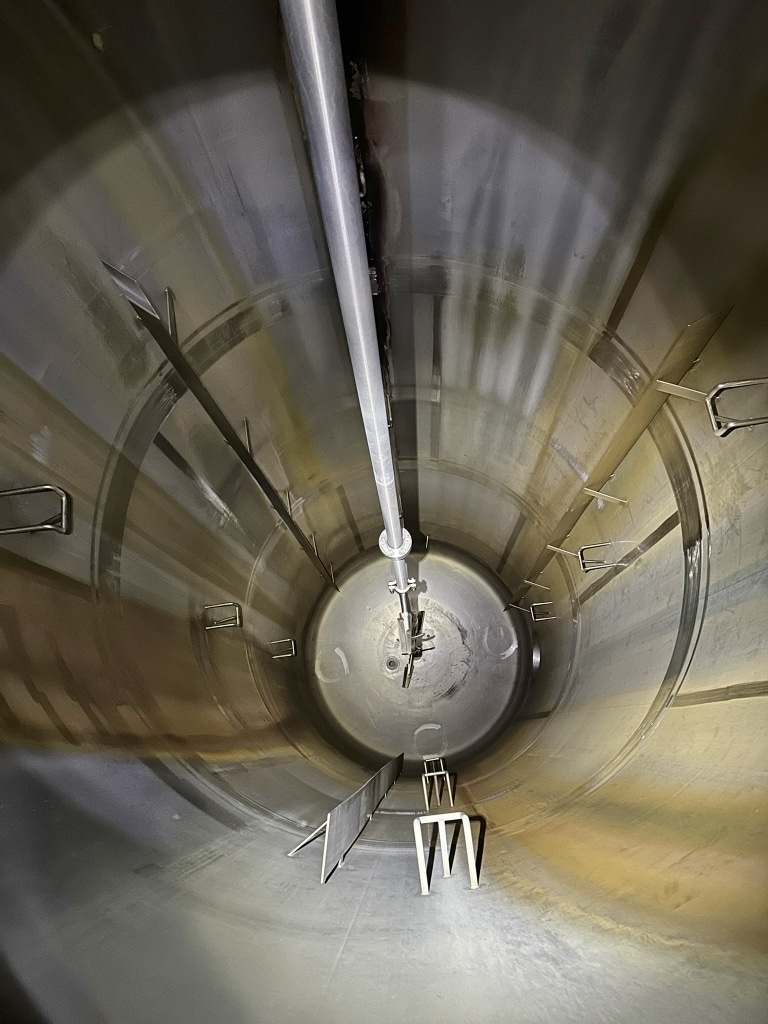

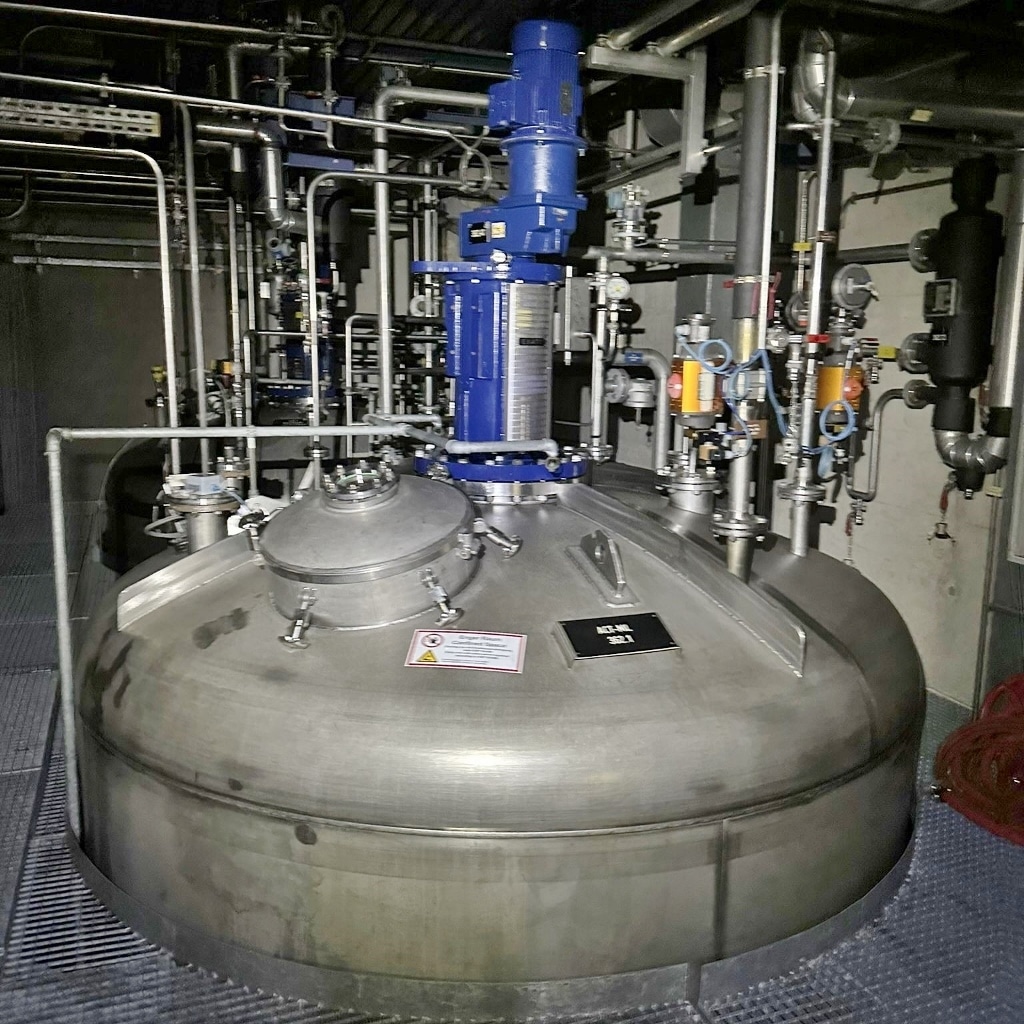

68155-liter Vertical tank in Acid-resistant 316
This is a 68155-liter used tank, model Vertical, manufactured from Acid-resistant 316. A mixer is installed. The tank is designed as a pressure vessel.
Overpressure: 1 bar. Underpressure/vacuum: 0,25 bar. Working pressure: pressure and vacuum. Temperature range to 100 °C.
The tank is suitable for industrial process environments where corrosion resistance, hygiene and operational reliability are important properties.

The facts

  • Additional information

Additional information

Product Description
Material: Acid-resistant 316
Model: Vertical
New / Used: Used
Operating Pressure in Tank: pressure and vacuum
Configuration: single-skin
Max. Service Temperature: 100 °C
Mobile Tank: No, it is not.

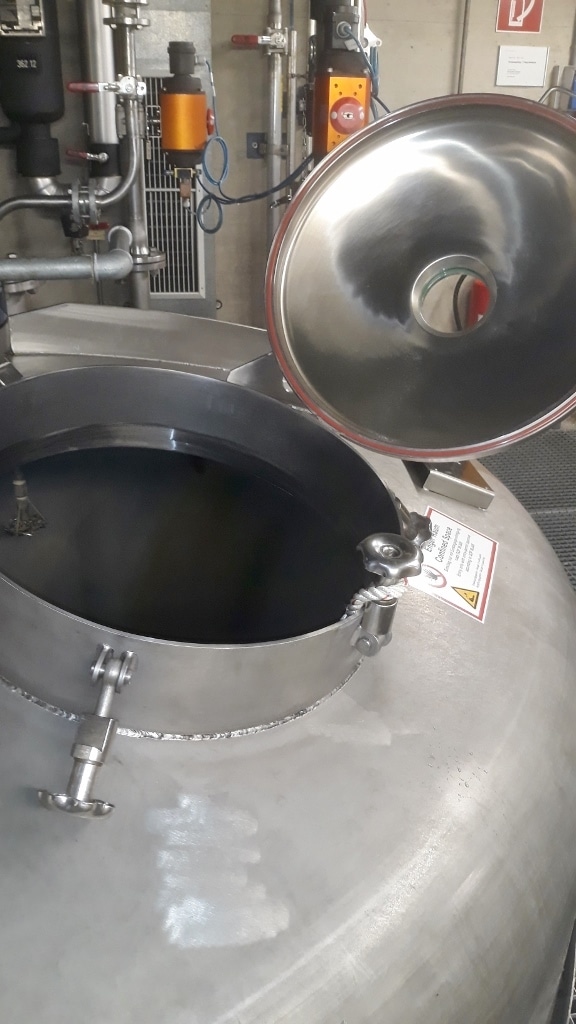

Övrig information: Solvents; Manhole cylinder DN 600; Total height without taking the agitator into account; Metallic discolouration inside; we can't give any guarantees about the agitator
Agitator: Yes
Overpressure: 1 bar
Complete Drainage: Yes
Vacuum Pressure: 0,25 bar
Pressure Vessel: Yes
Heating / Cooling: No
Contact Surface: SS AISI 316 (V4A)
Volume in liters: 68155
Equipment
Product Dokument finns: No, it is not.
Agitator flange: No
Nameplate: No, it is not.
Technical Drawing Available: No, it is not.
Material Overview
Material: Acid-resistant 316
Tank Dimensions
Cylinder Height: 8,830 mm
Internal diameter: 3,000 mm
Total Height: 10.933 mm

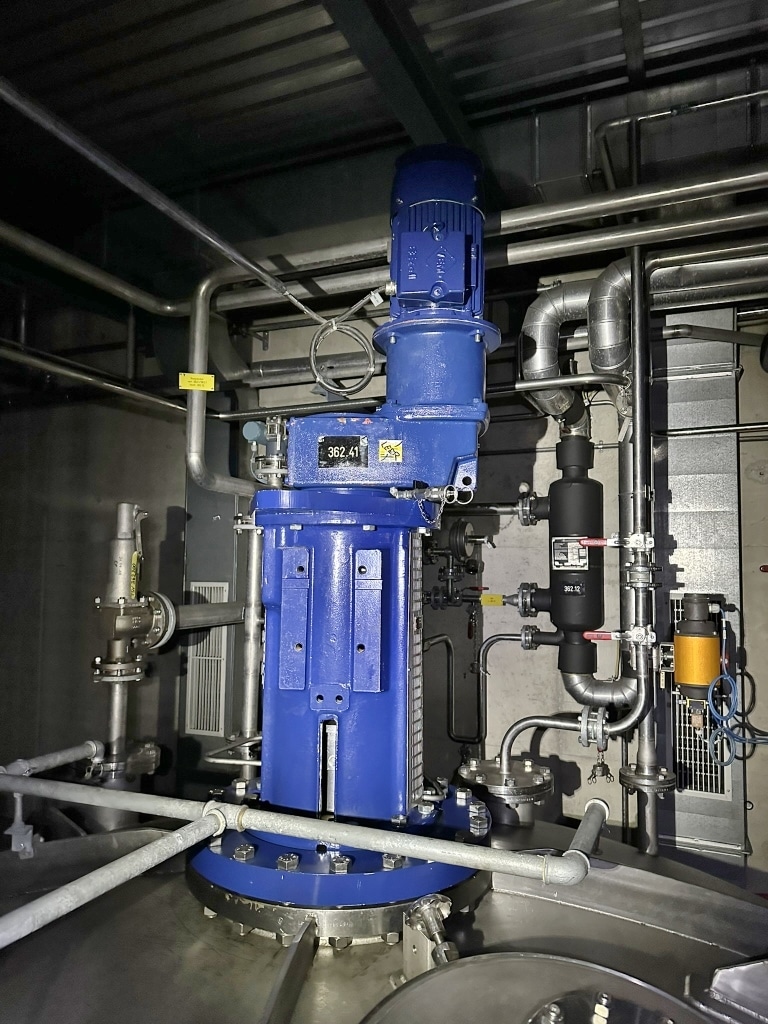

Stirrer
Power (kW): 5
Speed (RPM): 77
Tjocklek på tank
Bottom: 12 mm (0,5 in.)
Cylinder: 6 mm
Top: 8 mm
Mer
Isolated: No
